Zivopower zero export meter
Zivopower zero export meter is a MID approved single phase DIN rail WiFi energy meter with 100A direct connection, designed for solar PV systems, hybrid inverter export control, and import/export energy monitoring

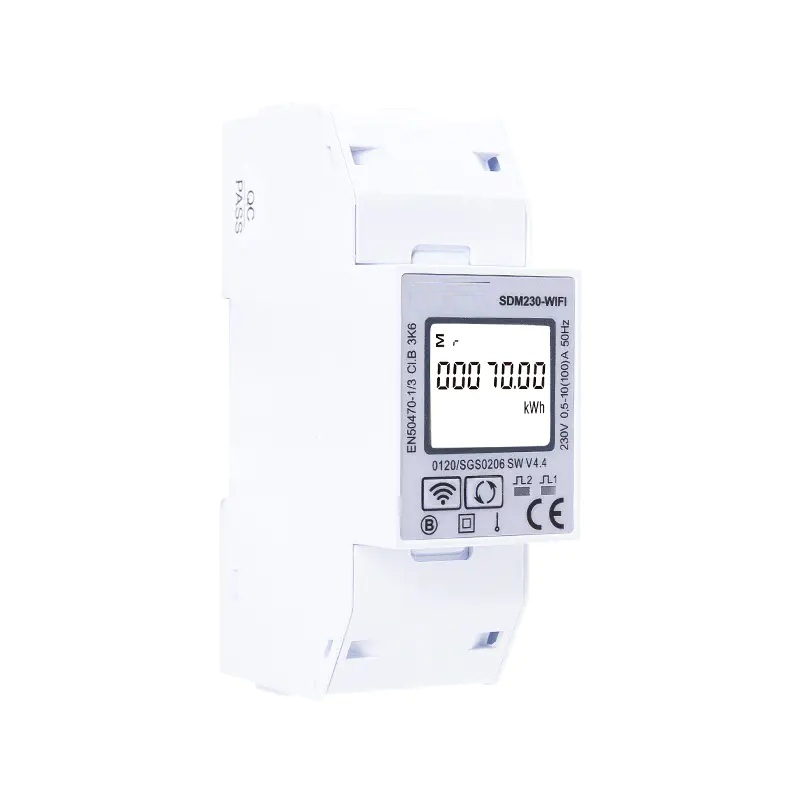

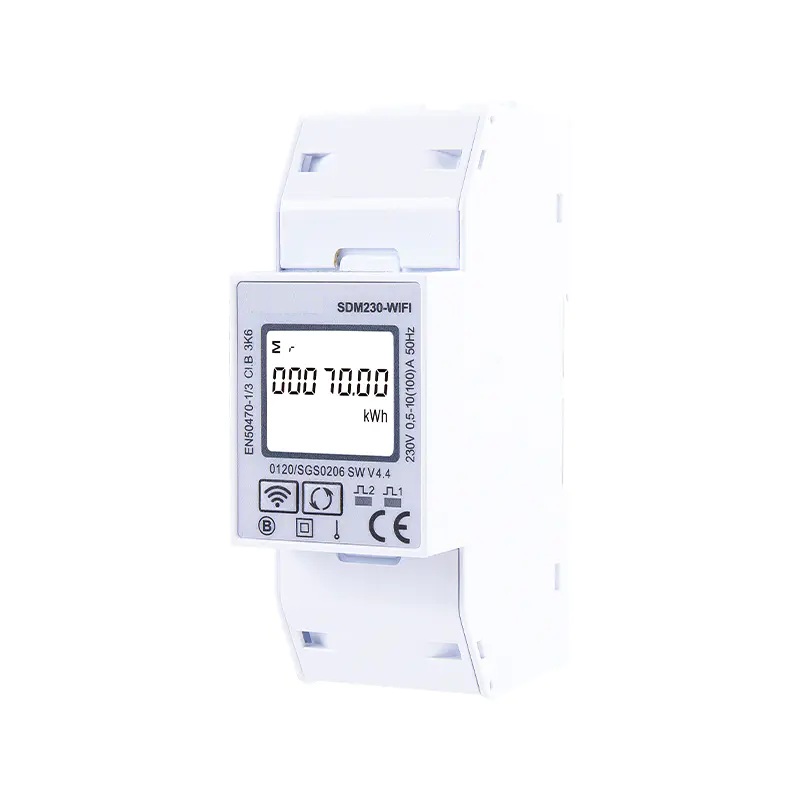

Zivopower Zero Export Meter
MID Approved 100A Direct Connection Single Phase DIN Rail WiFi Energy Meter
Product Overview
The Zivopower Zero Export Meter is a compact and reliable single phase DIN rail energy meter designed for modern solar and energy monitoring applications. Built for 100A direct connection, this MID approved energy meter combines accurate measurement, WiFi communication, and real-time bidirectional energy meter functionality in one space-saving DIN rail unit.
It is well suited for residential solar systems, light commercial PV installations, hybrid inverter systems, and projects that require precise import/export power monitoring. As a practical solar zero export meter, it can also be used as an anti-export meter, no export meter, import export energy meter, or solar PV energy meter where export limitation and self-consumption control are important.
For installers and system integrators, this meter is a dependable zero export meter for hybrid inverter setups that need stable, real-time grid flow data to prevent unwanted power export and improve system control accuracy.
Technical Specifications
| General Specifications | |
|---|---|
| Product Type | Single Phase DIN Rail WiFi Energy Meter |
| Type of Measurement | RMS on single phase AC system (1P+N) |
| System Wiring | 1P2W |
| Display | LCD with backlit |
| Communication | WiFi |
| Output | 2 Pulse Outputs + WiFi |
| Bi-directional Measurement | Yes |
| Approval | MID Approved |
| Meter Width | 2 Module / 36 mm |
| Electrical Characteristics | |
|---|---|
| Rated Current (Ib/Iref) | 10A |
| Max Current (Imax.) | 100A |
| Min Current (Imin.) | 0.15A |
| Rated Voltage (Un) | 230V |
| Operational Voltage | 80%~120% of Un |
| Measurement Accuracy | |
|---|---|
| Voltage | ±0.5% |
| Current | ±0.5% |
| Frequency | ±0.2% |
| Power Factor | 0.01 |
| Active Power | ±1% |
| Reactive Power | ±1% |
| Apparent Power | ±1% |
| Active Energy | Class 0.5 IEC62053-22 / Class C EN50470-3:2022 |
| Reactive Energy | Class 2 IEC62053-23 |
| Measurement Functions | |
|---|---|
| Measured Parameters | kWh, W, V, A, PF, Hz, dmd, etc. |
Product Description
The Zivopower Zero Export Meter is engineered for applications where accurate import and export monitoring is essential. In solar installations, especially in Europe, a zero export meter is commonly used to help the inverter detect grid flow in real time and adjust output accordingly. This is why it is also commonly described as a solar zero export meter, anti-export meter, or no export meter.
With its compact DIN rail structure, this single phase DIN rail energy meter fits neatly into residential and commercial distribution boards. The 100A direct connection energy meter design eliminates the need for external CTs in many single-phase applications, helping simplify wiring and reduce installation time.
The built-in WiFi function makes it a practical WiFi energy meter for smart monitoring systems. It can provide clear visibility into household consumption, solar generation behavior, and power exchange with the grid. For hybrid systems, it works effectively as a zero export meter for hybrid inverter applications, supporting more stable export limitation control and improved self-consumption management.
Because it supports bi-directional measurement, this meter is also an effective import export energy meter and bidirectional energy meter for users who need precise data on imported and exported electricity. Combined with MID approval, compact size, and multi-parameter measurement capability, it is a strong fit for Europe-focused PV and energy management projects.
Applications
- Zero export control for hybrid inverter systems
- Residential solar PV systems
- Light commercial solar installations
- Import/export energy monitoring
- Self-consumption optimization
- Smart home and energy management systems
- Utility sub-metering
