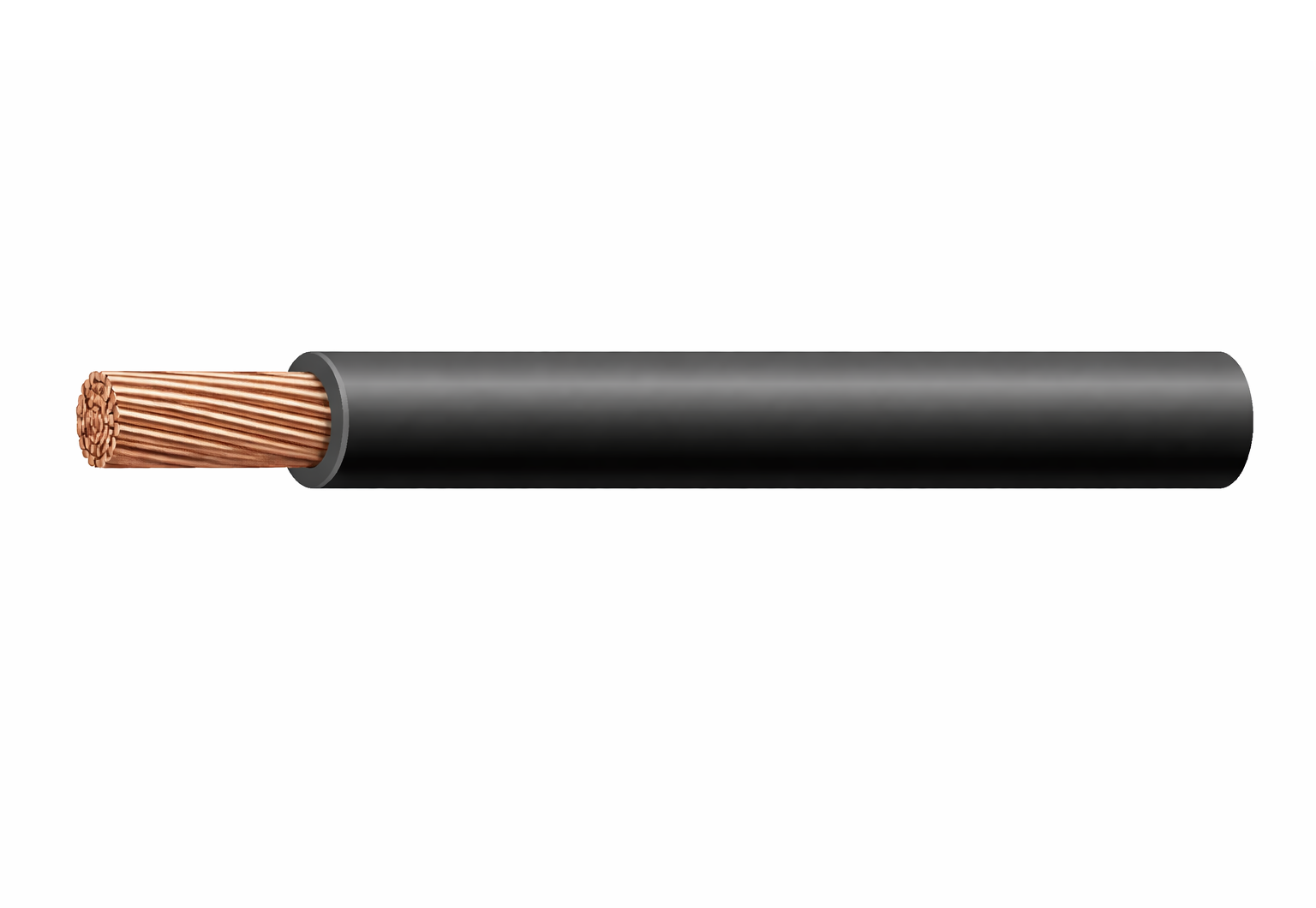

XHHW-2 Power Cable
XHHW-2 power cable with copper conductor, E-beam XLPO insulation, DC 600/1000V rating, UV resistance, LSZH performance, and strong mechanical stability for power applications.
XHHW-2 Power Cable
XHHW-2 power cable with copper conductor, E-beam XLPO insulation, DC 600/1000V rating, high UV stability, low smoke halogen free performance, and strong mechanical and insulation resistance for demanding power applications.
Product Overview
Zivopower XHHW-2 Power Cable is designed for reliable power transmission in demanding electrical and industrial environments. It uses a copper conductor with E-beam XLPO insulation, providing dependable electrical performance, good thermal stability, and durable mechanical protection for long-term use.
With a voltage rating of DC 600/1000V and a rated temperature of +90°C, this cable is suitable for power distribution systems requiring safe and stable cable performance. It also features higher UV stability, higher mechanical stability, low smoke halogen free performance, and higher insulation resistance, making it suitable for indoor and outdoor installations.
Manufactured with reference to UL44, this XHHW-2 power cable is a practical choice for contractors, distributors, industrial users, and project developers looking for stable cable quality and dependable performance in power transmission and electrical wiring applications.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | XHHW-2 Power Cable |
| Reference Standard | UL44 |
| Voltage Rating | DC 600/1000V |
| Conductor | Copper |
| Insulation / Jacket | E-beam XLPO |
| Rated Temperature | +90°C |
| Max. Conductor Temperature | +90°C |
| Short Circuit Temperature | +150°C |
| Bending Radius | +4D |
| Impact Resistance | ASTM D256 |
| Fire Performance | Pass VW-1 Flame Test |
| Main Features | Higher UV stability, higher mechanical stability, low smoke halogen free, higher insulation resistance |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for DC 600/1000V power transmission and wiring applications |
| Conductor Performance | Copper conductor provides stable conductivity and reliable electrical transmission |
| Insulation Performance | E-beam XLPO insulation offers strong dielectric performance and dependable thermal stability |
| UV Resistance | Higher UV stability for improved outdoor durability |
| Mechanical Stability | Higher mechanical stability for better installation performance and service life |
| LSZH Performance | Low smoke halogen free design supports safer use in electrical installations |
| Impact Resistance | Tested according to ASTM D256 for impact resistance |
| Fire Performance | Passes VW-1 flame test for improved fire safety performance |
| Temperature Performance | Rated temperature +90°C, max conductor temperature +90°C, short circuit temperature +150°C |
Size Table
| Cross Section (AWG/Kcmil) | Construction (No./mm±0.01) | DIA. (mm) ±1%d | Jacket Thickness (mm) | Ref Cable OD. (mm) | Cable Weight (kg/km) | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|---|---|
| 4 | 19/1.16 | 5.41 | 1.14 | 8.0 | 135 | 0.848 |
| 3 | 19/1.30 | 6.02 | 1.14 | 9.0 | 165 | 0.672 |
| 2 | 19/1.46 | 6.81 | 1.14 | 9.6 | 200 | 0.533 |
| 1 | 19/1.64 | 7.59 | 1.40 | 10.5 | 245 | 0.423 |
| 1/0 | 19/1.84 | 8.53 | 1.40 | 11.5 | 295 | 0.335 |
| 2/0 | 19/2.13 | 9.55 | 1.40 | 13.0 | 360 | 0.266 |
| 3/0 | 19/2.39 | 10.74 | 1.40 | 14.0 | 435 | 0.211 |
| 4/0 | 19/2.68 | 12.07 | 1.40 | 15.3 | 525 | 0.167 |
| 250 | 37/2.092 | 13.21 | 1.65 | 17.2 | 630 | 0.141 |
| 300 | 37/2.290 | 14.48 | 1.65 | 18.3 | 740 | 0.118 |
| 350 | 37/2.480 | 15.65 | 1.65 | 19.4 | 860 | 0.101 |
| 400 | 37/2.644 | 16.74 | 1.65 | 20.4 | 965 | 0.088 |
Key Features
- Copper conductor for stable electrical conductivity and reliable power transmission.
- E-beam XLPO insulation provides strong thermal and electrical performance.
- DC 600/1000V rating for power cable applications.
- Higher UV stability for improved outdoor durability.
- Low smoke halogen free design for safer installation environments.
- Higher mechanical stability for stronger installation performance and longer service life.
- Higher insulation resistance for dependable cable safety and reliability.
- Passes VW-1 flame test and meets ASTM D256 impact resistance requirement.
Applications
- Power distribution systems
- Industrial electrical wiring
- Renewable energy and solar-related power connections
- Indoor and outdoor low-voltage power installations
- Commercial and industrial cable routing projects
- Electrical systems requiring durable XLPO insulated power cable
Why Choose Zivopower
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
- Professional supplier of solar and electrical connection products
- Clear technical specifications for easier sourcing and project evaluation
- Stable quality control before shipment
- Support for EPCs, distributors, and importers
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is XHHW-2 power cable used for?
It is used for power transmission, industrial wiring, and electrical distribution applications requiring durable insulated cable performance.
What is the rated voltage of this cable?
The rated voltage is DC 600/1000V.
What conductor material is used?
The cable uses copper conductor.
What insulation material is used?
The cable uses E-beam XLPO insulation.
Is this cable suitable for outdoor use?
Yes. It has higher UV stability, higher mechanical stability, and higher insulation resistance for demanding indoor and outdoor applications.
What standards or tests does this cable comply with?
It references UL44 and passes ASTM D256 impact resistance and VW-1 flame test requirements.
What sizes are available in this table?
The listed sizes range from 4 AWG to 400 Kcmil.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
