Type 2 to Type 2 EV charging cable with IEC 62196 standard, 16A and 32A options, 1-phase and 3-phase charging, IP55 protection, and power from 3.5kW to 22kW.
Type 2 to Type 2 EV charging cable for AC charging, available in 16A and 32A versions for 1-phase and 3-phase applications, with IEC 62196 Type 2 standard, IP55 protection, and easy-to-carry coiled design.

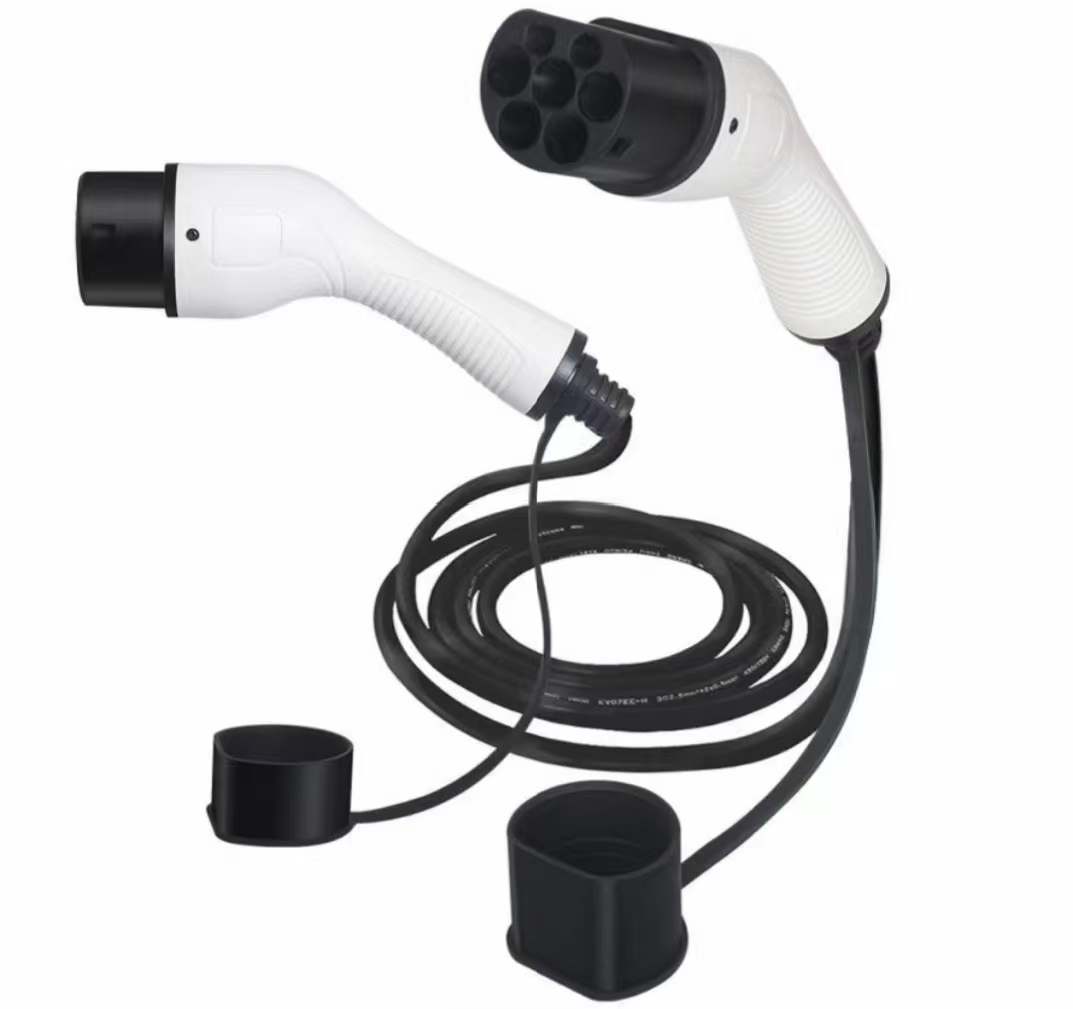

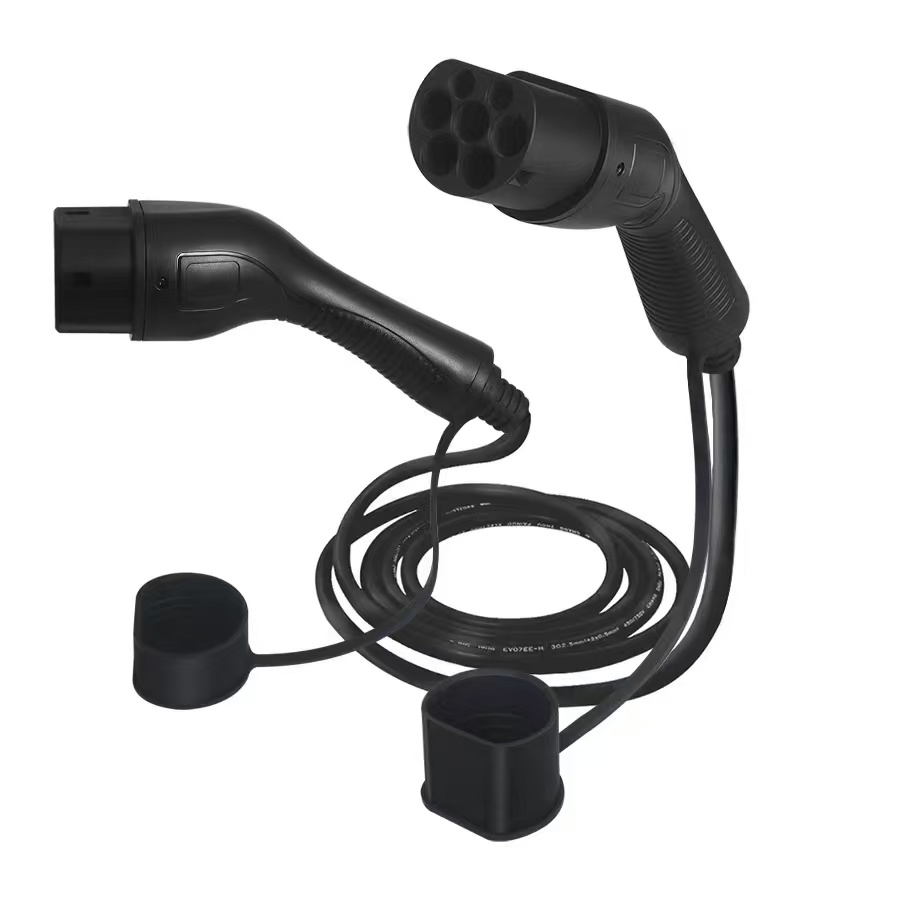

Zivopower Type 2 to Type 2 EV Charging Cable is designed for convenient AC charging of electric vehicles equipped with Type 2 charging interfaces. This cable is suitable for European standard EV charging applications and follows IEC 62196 Type 2 requirements.
According to the product image, the cable is available in multiple versions covering 16A and 32A, with both single-phase and three-phase options. The rated voltage includes AC 250V and AC 480V, while the power range covers 3.5kW, 7kW, 11kW, and 22kW.
The coiled cable design makes it easier to store and carry, helping reduce cable clutter during daily charging use. With IP55 protection and certifications including TUV-Mark, CB, CE, RoHS, UKCA, and REACH, this EV charging cable is suitable for practical charging applications requiring portability and compliance.
| Item | Specification |
|---|---|
| Product Name | Type 2 to Type 2 EV Charging Cable |
| Executive Standard | IEC 62196 Type 2 |
| Available Models | V1-16S BS, V1-32S BS, V1-16T BS, V1-32T BS |
| Rated Voltage | AC 250V / AC 480V |
| Rated Current | 16A / 32A |
| Phase Type | 1 Phase / 3 Phase |
| Rated Power | 3.5kW / 7kW / 11kW / 22kW |
| Protection Rank | IP55 |
| Product Features | Easy to store and carry |
| Product Certificates | TUV-Mark, CB, CE, RoHS, UKCA, REACH |
| Model | Rated Voltage | Rated Current | Rated Power |
|---|---|---|---|
| V1-16S BS | AC 250V | 16A / 1 Phase | 3.5kW |
| V1-32S BS | AC 250V | 32A / 1 Phase | 7kW |
| V1-16T BS | AC 480V | 16A / 3 Phase | 11kW |
| V1-32T BS | AC 480V | 32A / 3 Phase | 22kW |
