Type 2 to Type 1 EV Charging Adapter 32A | IEC 62196 to SAE J1772

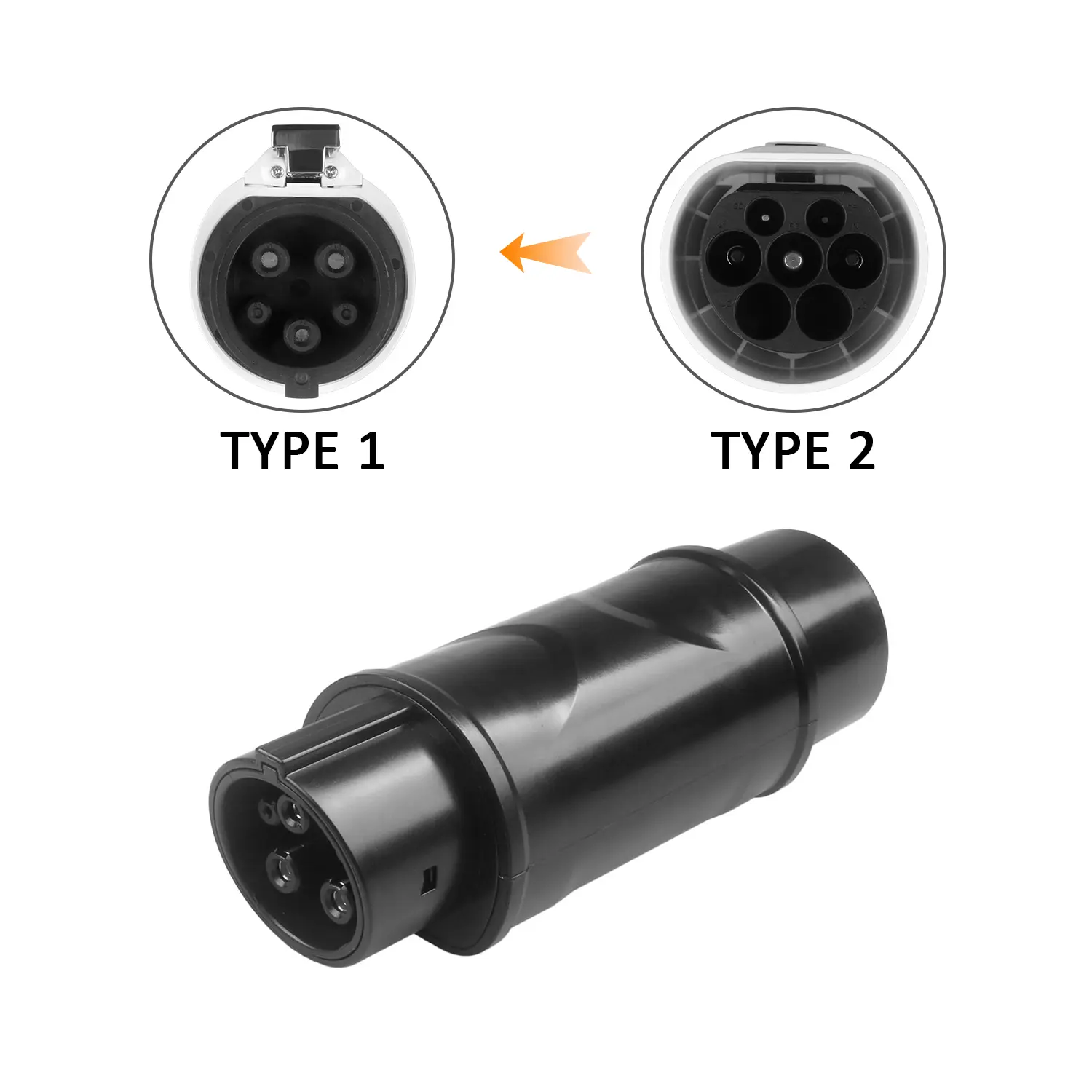

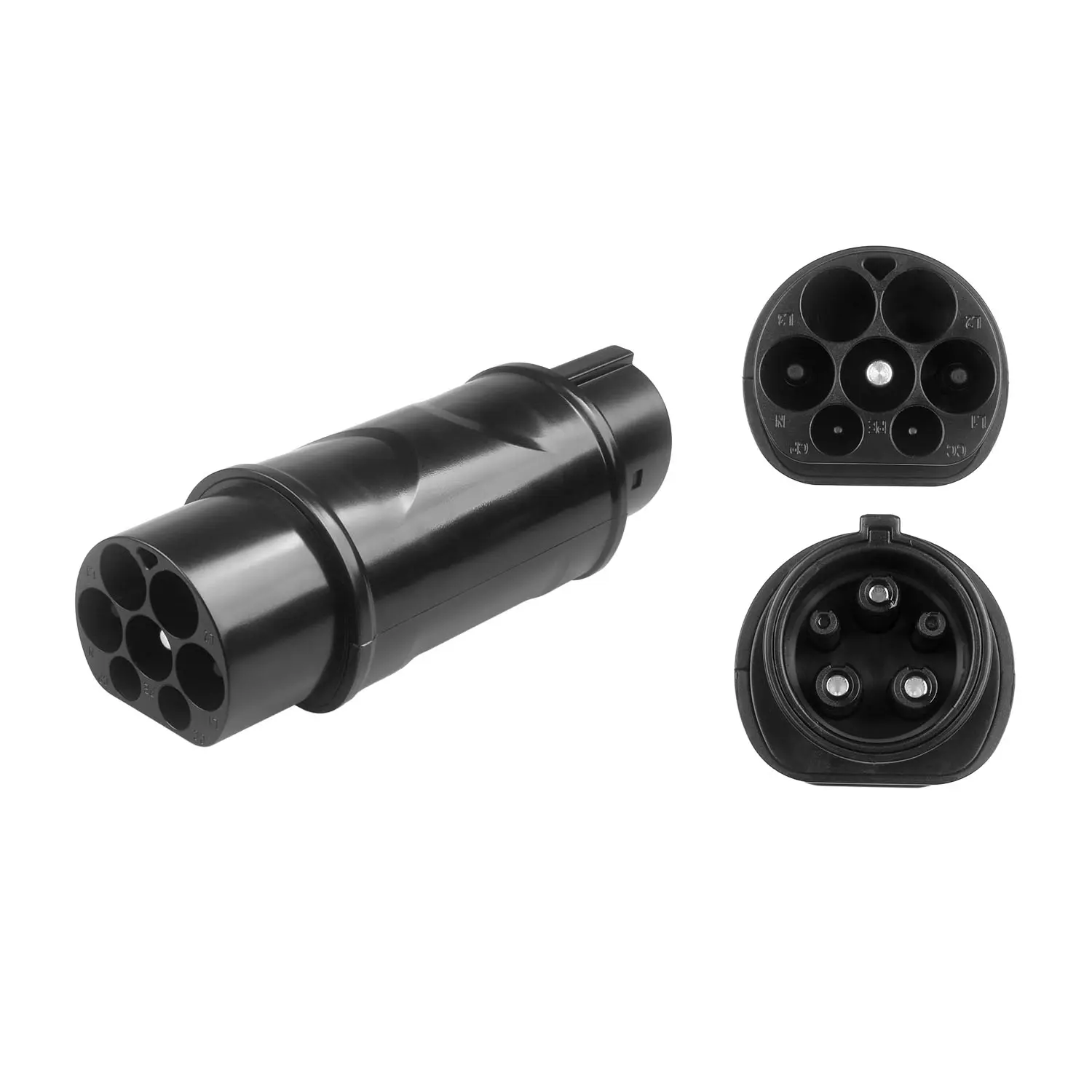

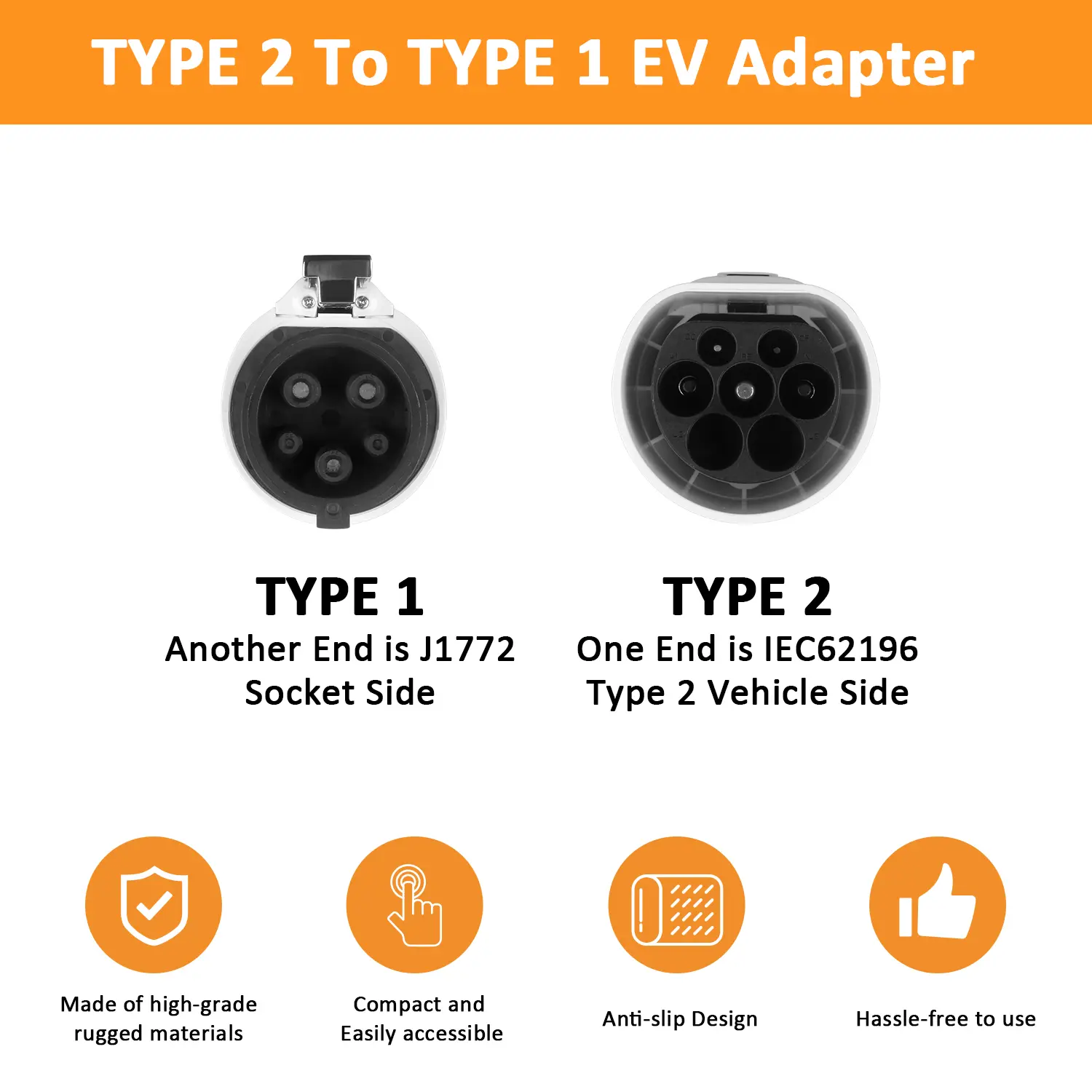

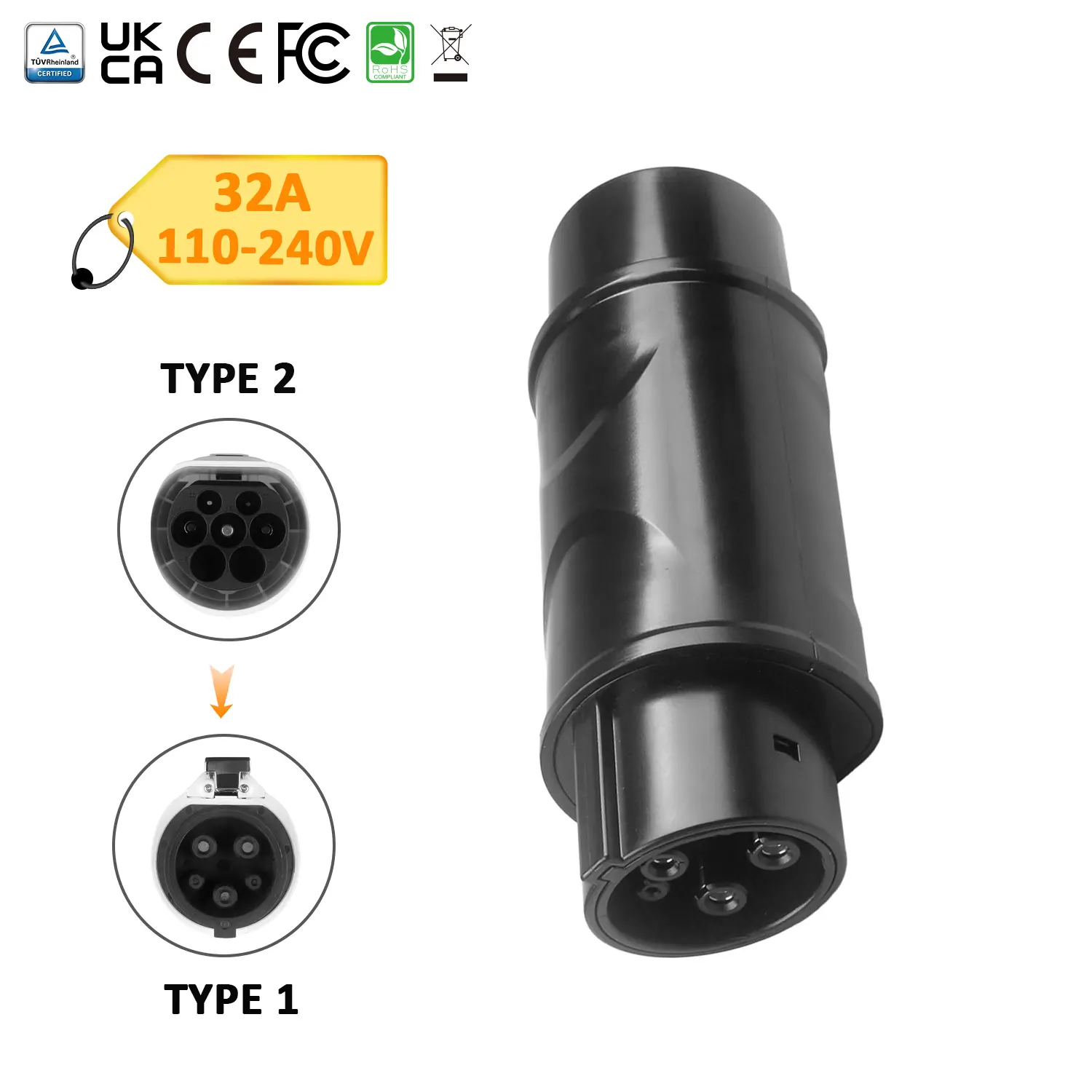

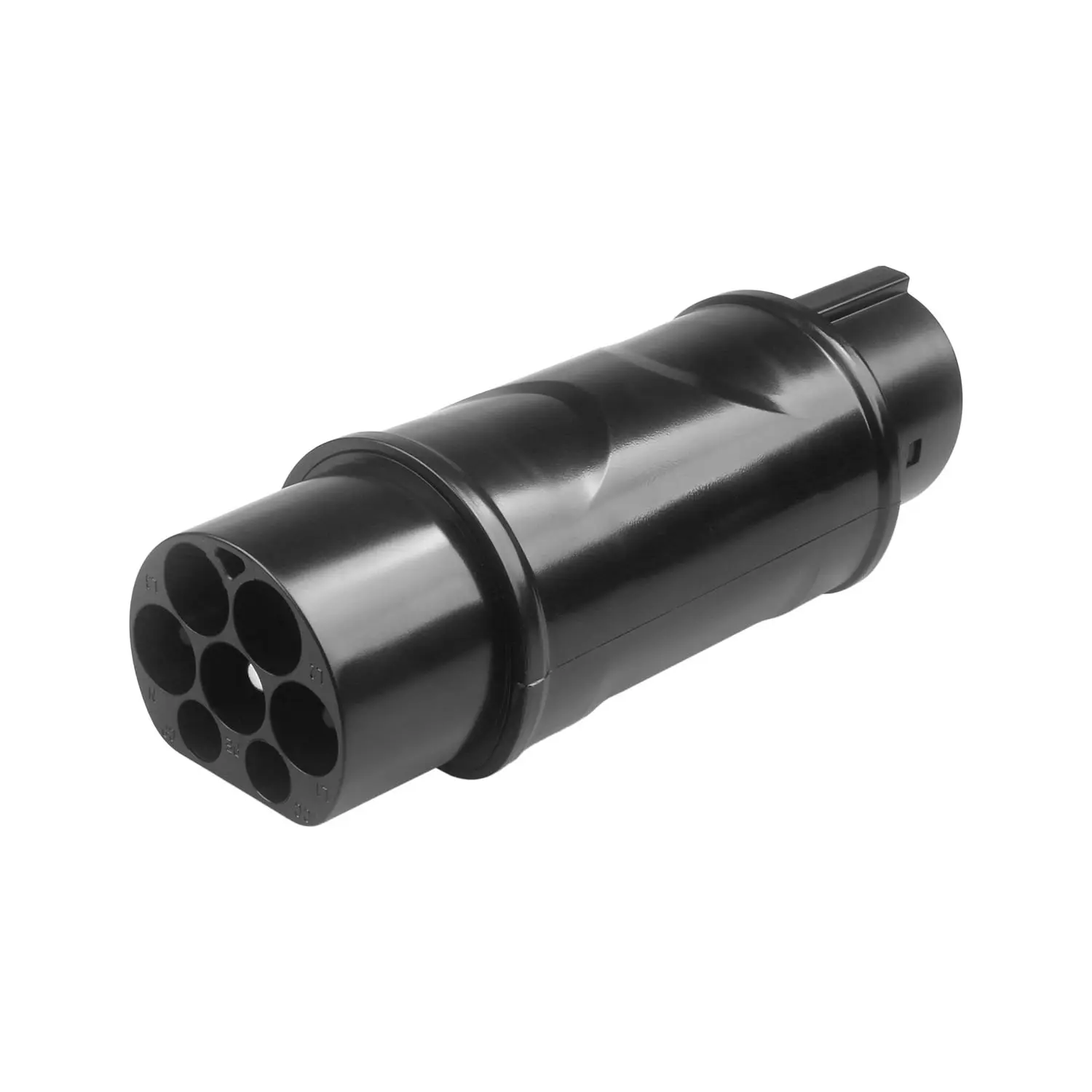

The Zivopower Type 2 to Type 1 EV Charging Adapter is designed to connect European Type 2 AC charging stations to electric vehicles equipped with a Type 1 (SAE J1772) inlet. Built for reliable charging compatibility, stable electrical performance, and long service life, it is suitable for home, workplace, and public AC charging applications.
Technical Specifications
| Product Name | Type 2 to Type 1 EV Charging Adapter |
|---|---|
| Charger Side | Type 2 (IEC 62196) |
| Vehicle Side | Type 1 (SAE J1772) |
| Rated Current | 32A |
| Rated Voltage | 110–240V AC |
| Frequency | 50/60Hz |
| Insulation Resistance | >100MΩ |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Withstand Voltage | 2000V |
| Mechanical Life | >10,000 no-load plug cycles |
| Insertion Force | 45N < F < 80N |
| Operating Temperature | -30℃ to 50℃ |
| Shell Material | Thermoplastic, flame-retardant UL94V-0 |
| Conductor Material | Silver-plated copper alloy |
Product Overview
The Zivopower Type 2 to Type 1 EV Charging Adapter provides a practical charging solution for electric vehicles using different AC charging standards. It allows EVs with a Type 1 inlet to charge from Type 2 AC charging stations commonly used across Europe.
This adapter is especially suitable for distributors, wholesalers, importers, and project buyers serving markets where Type 1 and Type 2 charging standards coexist. It helps expand charging compatibility without changing the vehicle-side charging interface.
Key Features of the Type 2 to Type 1 EV Charging Adapter
Compatible with European Type 2 Charging Stations

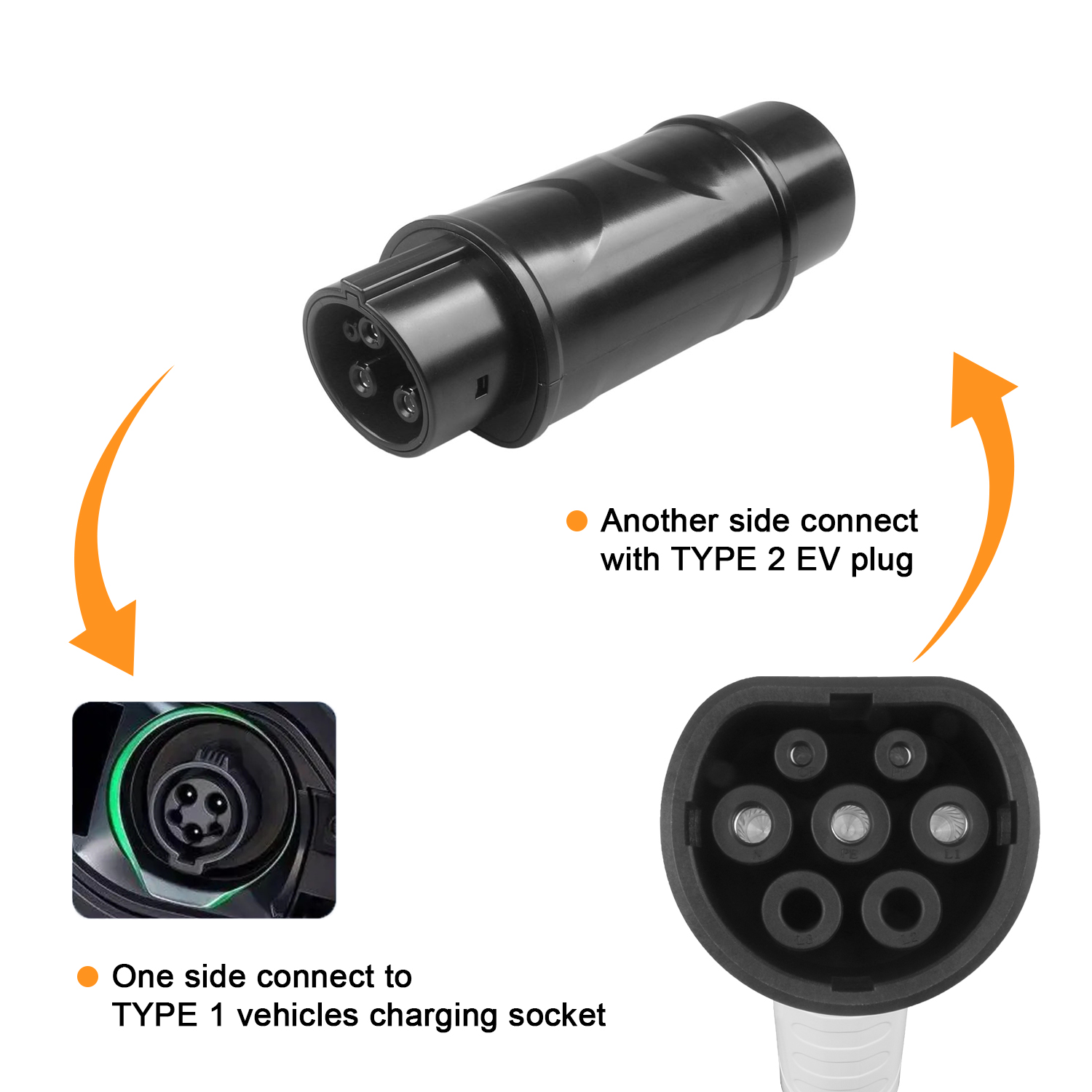

This Type 2 to Type 1 EV charging adapter is designed to connect IEC 62196 Type 2 charging stations with SAE J1772 Type 1 electric vehicles, making AC charging more convenient in cross-standard charging scenarios.
Stable 32A AC Charging Performance
Rated at 32A and 110–240V AC, this adapter supports reliable and stable daily charging. Low contact resistance and high insulation resistance help improve charging stability and electrical safety.
Durable Construction for Repeated Use
The adapter features a flame-retardant UL94V-0 housing and silver-plated copper alloy conductors for dependable conductivity, durability, and long service life. It is designed for more than 10,000 no-load plug cycles.
Suitable for Various Charging Environments
With an operating temperature range of -30℃ to 50℃, this Type 2 to Type 1 EV charging adapter is suitable for residential charging, workplace charging, destination charging, and public AC charging applications.
Applications
- Type 1 EVs charging from European Type 2 AC stations
- Home EV charging setups
- Workplace and destination charging
- Public AC charging points
- EV accessory wholesale and distribution
- Mixed-standard EV charging markets
Why Choose Zivopower
Zivopower focuses on practical and market-oriented EV charging solutions for global distributors, wholesalers, and project buyers. We help customers simplify sourcing with reliable product options, stable quality, and integrated supply support across EV charging accessories and related energy products.
Frequently Asked Questions
What is a Type 2 to Type 1 EV charging adapter used for?
It is used to connect a Type 1 electric vehicle to a Type 2 AC charging station, allowing charging compatibility between different connector standards.
Is this adapter suitable for home charging?
Yes. It is suitable for home AC charging, as well as workplace and public charging environments where Type 2 stations are available.
What is the rated current of this EV adapter?
This adapter is rated at 32A for AC charging applications.
Can this adapter be used in European markets?
Yes. It is designed for use with European Type 2 AC charging stations and Type 1 vehicle inlets.
