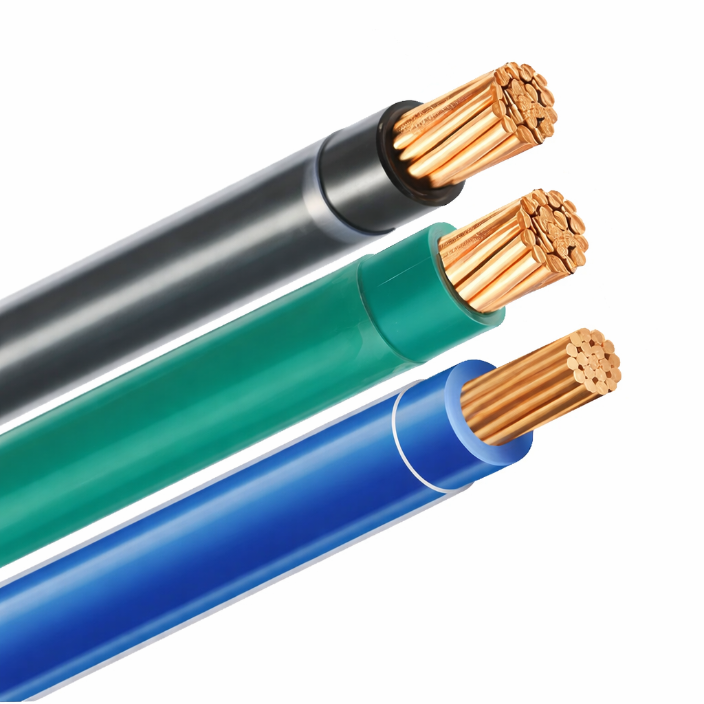

THHN Power Cable
THHN power cable with copper conductor, PVC insulation, Nylon 12 jacket, DC600V rating, UV resistance, anti-ants protection, and reliable electrical performance for power wiring applications.
THHN Power Cable
THHN power cable with copper conductor, PVC insulation, Nylon 12 jacket, DC600V rating, and enhanced UV stability, mechanical stability, insulation resistance, and anti-ants performance for reliable power wiring applications.
Product Overview
Zivopower THHN Power Cable is designed for dependable power transmission and electrical wiring applications where durability, insulation reliability, and installation performance are important. The cable uses a copper conductor with PVC insulation and a Nylon 12 jacket, providing stable electrical performance together with practical mechanical protection.
With a voltage rating of DC600V and a rated temperature range of 70°C to 90°C, this THHN cable is suitable for power distribution, industrial wiring, building electrical systems, and related applications. It also features higher UV stability, higher mechanical stability, higher insulation resistance, and anti-ants protection, making it a practical choice for more demanding installation environments.
Manufactured with reference to UL83 and UL758, and tested for fire performance and UV resistance, this cable is suitable for contractors, distributors, and project developers looking for stable cable quality and reliable performance in commercial and industrial power systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | THHN Power Cable |
| Reference Standard | UL83 / UL758 |
| Voltage Rating | DC600V |
| Conductor | Copper |
| Insulation | PVC |
| Jacket | Nylon 12 |
| Rated Temperature | 70°C ~ +90°C |
| Max. Conductor Temperature | +130°C |
| Short Circuit Temperature | +250°C |
| Testing Standard | Fire performance: Pass VW-1 Flame Test; UV resistant: UL 44, UL 2556 |
| Main Features | Higher UV stability, higher mechanical stability, higher insulation resistance, anti-ants |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for DC600V power transmission and electrical wiring applications |
| Conductor Performance | Copper conductor provides stable conductivity and reliable electrical transmission |
| Insulation Performance | PVC insulation offers dependable dielectric performance for power wiring use |
| Jacket Performance | Nylon 12 jacket improves abrasion resistance and mechanical durability |
| UV Resistance | Higher UV stability tested according to UL 44 and UL 2556 |
| Mechanical Stability | Higher mechanical stability for easier installation and longer service life |
| Insulation Resistance | Higher insulation resistance helps improve electrical safety and reliability |
| Fire Performance | Passes VW-1 flame test for improved fire safety performance |
| Temperature Performance | Rated temperature 70°C to +90°C, max conductor temperature +130°C, short circuit +250°C |
Size Table
| Cross Section (AWG/Kcmil) | Construction (No./mm±0.01) | DIA. (mm) +1%d | Insulation Thickness (mm) | Jacket Thickness (mm) | Ref Cable OD. (mm) |
|---|---|---|---|---|---|
| 8 | 19/0.73 | 3.60 | 0.76 | 0.13 | 5.39 |
| 6 | 19/0.92 | 4.60 | 0.76 | 0.13 | 6.30 |
| 4 | 19/1.16 | 5.75 | 1.02 | 0.15 | 8.06 |
| 3 | 19/1.30 | 6.40 | 1.02 | 0.15 | 8.74 |
| 2 | 19/1.46 | 7.30 | 1.02 | 0.15 | 9.53 |
| 1 | 19/1.64 | 8.20 | 1.27 | 0.18 | 11.05 |
| 1/0 | 19/1.84 | 9.20 | 1.27 | 0.18 | 12.04 |
| 2/0 | 19/2.13 | 10.30 | 1.27 | 0.18 | 13.16 |
| 3/0 | 19/2.39 | 11.60 | 1.27 | 0.18 | 14.43 |
| 4/0 | 19/2.68 | 13.10 | 1.27 | 0.18 | 15.85 |
| 250 | 37/2.092 | 14.20 | 1.52 | 0.20 | 17.23 |
| 300 | 37/2.290 | 15.50 | 1.52 | 0.20 | 18.54 |
| 350 | 37/2.480 | 16.80 | 1.52 | 0.20 | 19.74 |
| 400 | 37/2.644 | 18.00 | 1.52 | 0.20 | 20.85 |
Key Features
- Copper conductor for stable electrical conductivity and reliable power transmission.
- PVC insulation provides dependable electrical insulation for power wiring applications.
- Nylon 12 jacket improves abrasion resistance and mechanical durability.
- DC600V rated for electrical and industrial power applications.
- Higher UV stability for improved outdoor durability.
- Higher mechanical stability for easier installation and longer service life.
- Higher insulation resistance for safer and more reliable operation.
- Anti-ants performance for demanding installation environments.
Applications
- Building electrical wiring systems
- Industrial power distribution
- Commercial electrical installations
- Control panels and switchboards
- Indoor and outdoor electrical cable routing
- Power systems requiring durable PVC and nylon insulated cable
Why Choose Zivopower
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
- Professional supplier of solar and electrical connection products
- Clear technical specifications for easier sourcing and project evaluation
- Stable quality control before shipment
- Support for EPCs, distributors, and importers
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is THHN power cable used for?
It is used for power distribution, building wiring, industrial electrical systems, and commercial electrical installations.
What is the rated voltage of this cable?
The rated voltage is DC600V.
What conductor material is used?
The cable uses copper conductor.
What insulation and jacket materials are used?
The cable uses PVC insulation and a Nylon 12 jacket.
Is this cable suitable for outdoor use?
Yes. It has higher UV stability, higher mechanical stability, and higher insulation resistance for demanding installation environments.
What standards or tests does this cable comply with?
It references UL83 and UL758, passes VW-1 flame test, and meets UV resistance requirements under UL 44 and UL 2556.
What sizes are available in this table?
The listed sizes range from 8 AWG to 400 Kcmil.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
