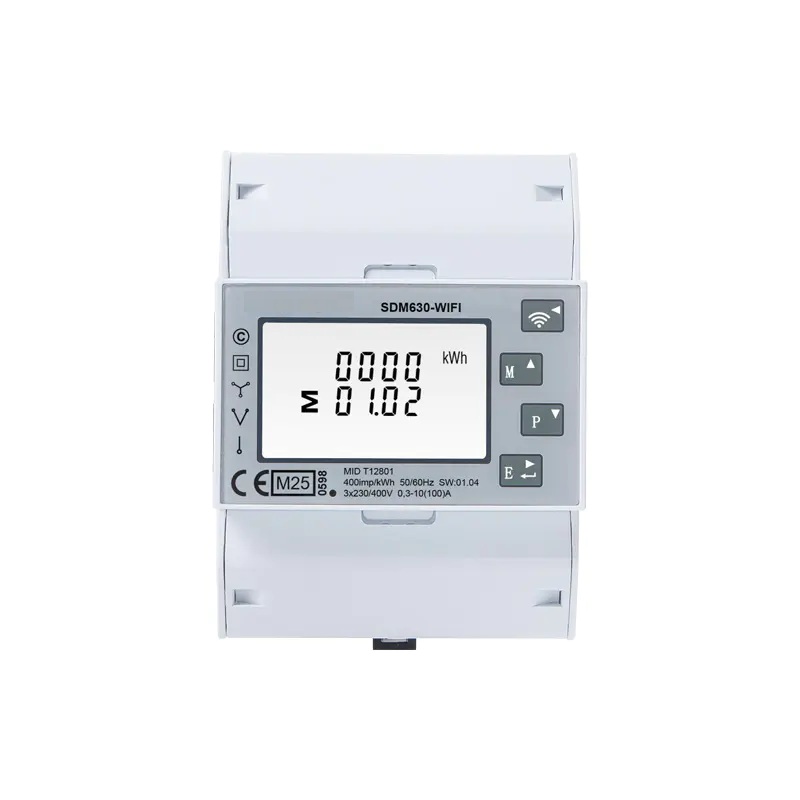

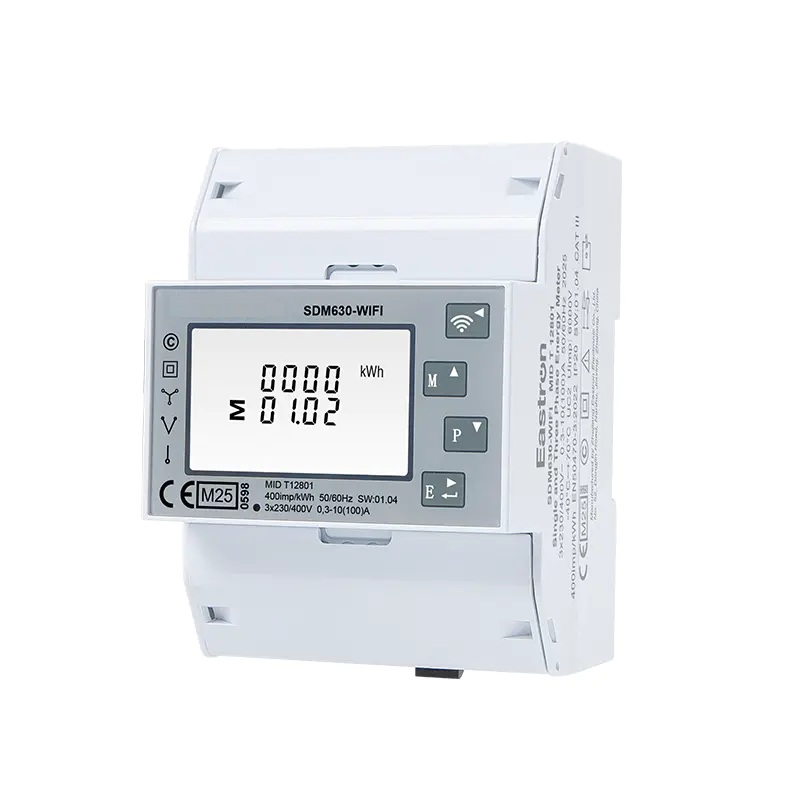

SDM630-WIFI 100A Direct Load Wi-Fi DIN Rail Three Phase MID Energy Meter
ivopower SDM630-WIFI is a 100A direct load three phase MID energy meter with Wi-Fi, bi-directional measurement, pulse output, and remote platform monitoring.
Zivopower SDM630-WIFI
100A Direct Load Wi-Fi DIN Rail Three Phase MID Energy Meter
Technical Specifications
| Item | Specification |
|---|---|
| Model | SDM630-WIFI |
| Type of Measurement | RMS including harmonics on three phase AC system (3P, 3P+N) |
| System Type | 3P4W / 3P3W / 1P2W |
| Rated Current (Ib/Iref) | 10A |
| Max Current (Imax.) | 100A |
| Min Current (Imin.) | 0.3A |
| Starting Current | 40mA |
| Rated Voltage (Un) | 3*230/400V AC |
| Voltage Range (L-N) | 100 - 277V AC |
| Voltage Range (L-L) | 100 to 480V AC |
| Output | 2 Pulse Outputs + Wi-Fi |
| Wi-Fi Support | 2.4Ghz b / g / n |
| Wi-Fi Data Frequency | Every second |
| Voltage Accuracy | ±0.5% |
| Current Accuracy | ±0.5% |
| Frequency Accuracy | ±0.2% |
| Power Factor Accuracy | ±1% |
| Active Power Accuracy | ±1% |
| Reactive Power Accuracy | ±1% |
| Apparent Power Accuracy | ±1% |
| Active Energy Accuracy | Class 1/0.5 IEC 62053-21 |
| MID Active Energy Accuracy | Class B/C EN50470-3:2022 |
| Reactive Energy Accuracy | Class 2 IEC62053-23 |
| Measurement Parameters | kWh, kVArh, kW, kVAr, kVA, PF, Hz, V, A, dmd, THD etc. |
| Bi-directional Measurement | Yes |
| Pulse Output | Configurable for Import / Export kWh |
| Remote Reading | Supported via platform |
| Wi-Fi Signal Strength | Supported |
| System Integration | Flexible system integration |
| Certification | MID Certified |
Product Description
The Zivopower SDM630-WIFI is engineered for applications that require dependable three phase energy metering without the added cost and installation complexity of external CTs. With maximum 100A direct connection, the meter can be installed directly in suitable systems, making it an efficient option for distribution panels, sub-metering, energy management projects, EV charging infrastructure, and solar-related installations.
Designed for flexible field application, this model supports single phase two wire (1P2W), three phase three wire (3P3W), and three phase four wire (3P4W) systems. It measures a wide range of electrical parameters, including active energy, reactive energy, active power, reactive power, apparent power, voltage, current, frequency, power factor, maximum demand, and THD, allowing installers and operators to monitor both energy consumption and power quality from one compact DIN rail device.
For projects that require remote visibility, the SDM630-WIFI integrates Wi-Fi communication, allowing meter data to be uploaded for platform-based remote reading and centralized monitoring. This makes it especially suitable for multi-site energy management, distributed installations, commercial facilities, and smart metering applications where local manual reading is inefficient.
Another important advantage is its bi-directional measurement capability, which makes the meter suitable for applications where both import and export energy must be monitored. This is particularly useful in solar PV systems, energy storage applications, and zero export solutions, where power flow direction is critical for system control and reporting. The meter also supports configurable pulse outputs for import or export kWh, offering additional flexibility for integration with external monitoring or control systems.
With MID certification and compliance with EU Directive 2014/32/EU, the SDM630-WIFI is well suited for European projects that require reliable metering performance together with market-appropriate certification. For installers, distributors, and project developers, it provides a practical balance of compact installation, smart communication, and accurate three phase measurement in one device.
Key Features
- 100A direct load design for practical installation
- Supports 3P4W / 3P3W / 1P2W systems
- Wi-Fi communication for remote platform monitoring
- Bi-directional measurement for import/export energy monitoring
- Multi-parameter measurement for energy and electrical performance analysis
- 2 pulse outputs with configurable import/export settings
- MID certified for European market applications
- Compact DIN rail mounting for distribution boards and sub-metering systems
Applications
- Commercial and industrial energy monitoring
- Building energy management systems
- Distribution board sub-metering
- EV charging metering
- Solar PV import/export monitoring
- Remote electricity data collection and platform management
