IP68 Solar Connector 1500V
High-performance PV01 solar connector featuring IP68 protection, 1500V DC rating, and TÜV/UL certification. Designed for secure, long-term outdoor solar cabling with high current efficiency.

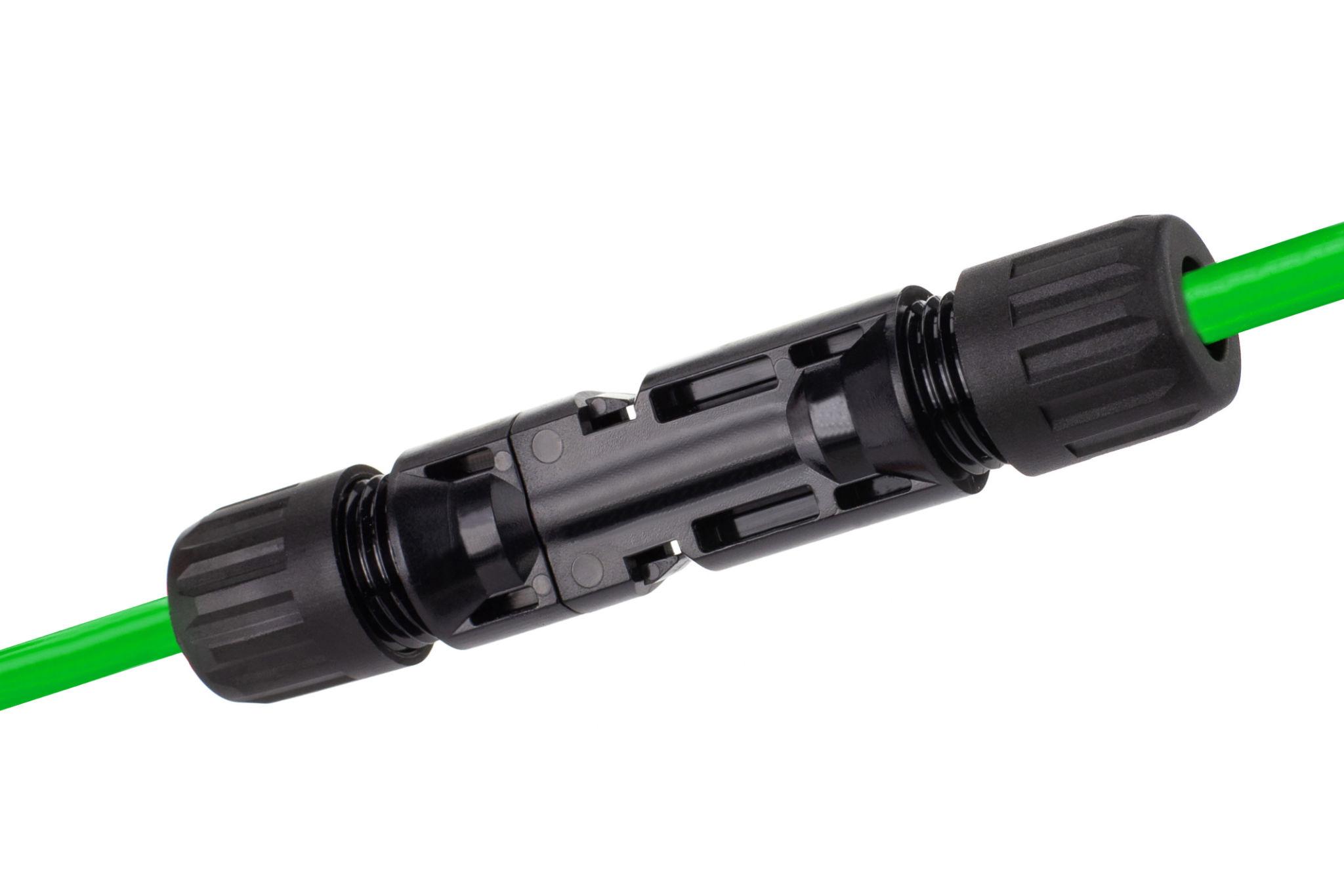

Zivopower PV01 IP68 Solar Connector (TÜV/UL Certified)
Reliable Connectivity for High-Performance Solar Systems
The Zivopower PV01 is a high-grade solar connector designed for seamless integration into photovoltaic (PV) systems. Engineered for durability and high current-carrying capacity, the PV01 ensures stable power transmission even in harsh outdoor environments. With its IP68 waterproof rating and robust locking mechanism, it is an ideal choice for utility-scale solar farms, commercial projects, and residential rooftop installations.
Key Features & Advantages
- Superior Weather Resistance: Rated IP68 (1m, 1h) for excellent protection against water and dust ingress, ensuring long-term outdoor reliability.
- High Current & Voltage Capacity: Supports systems up to 1500V DC (TÜV/UL), compatible with modern high-efficiency solar modules.
- Safety First: Equipped with an integrated locking system that requires a tool for disconnection, reducing the risk of accidental unplugging.
- Premium Materials: Made of high-quality, UV-resistant, and flame-retardant (UL94-V0) materials for demanding outdoor use.

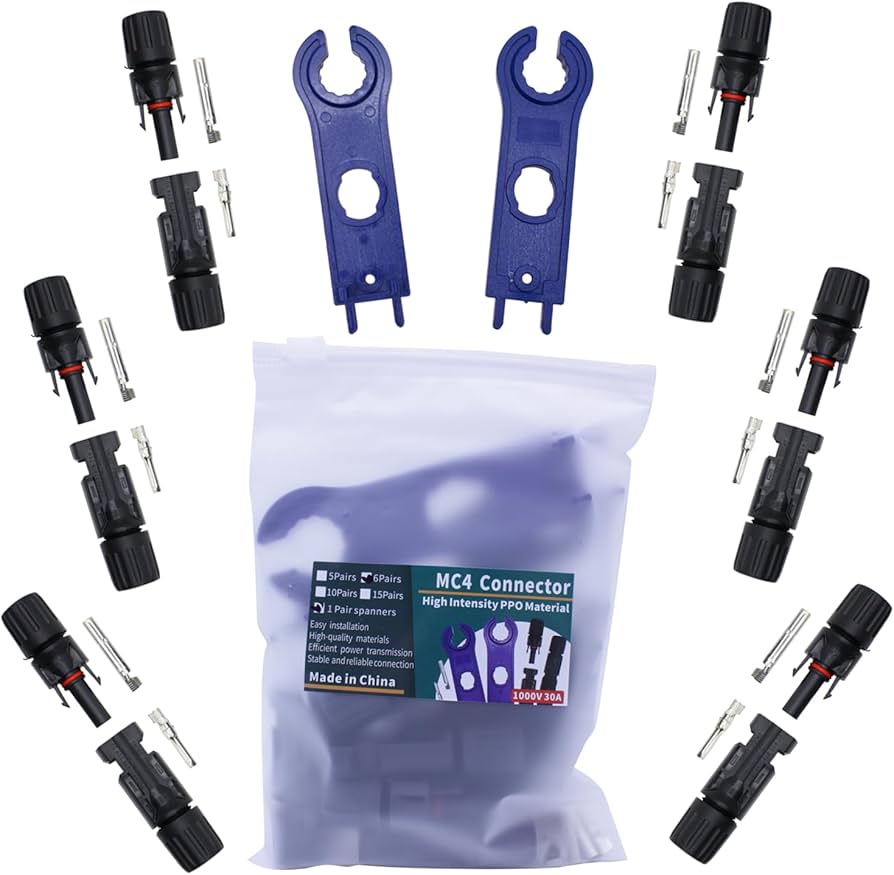

- Easy Installation: Compatible with standard solar cables 4mm² to 6mm² / 12AWG to 10AWG, supporting quick and secure crimp-and-snap assembly.
- Global Compliance: Certified by TÜV, UL, and CE, ensuring compliance with international safety and quality standards.
Technical Specifications
| Model Name | PV01 Series |
|---|---|
| Rated Voltage | 1000V / 1500V DC (TÜV/UL) |
| Rated Current | 35A (4mm²) / 45A (6mm²) |
| Protection Degree | IP68 (Mated) |
| Operating Temperature | -40°C to +85°C |
| Upper Limit Temperature | 105°C |
| Flame Class | UL94-V0 |
| Cable Compatibility | 4.0 mm² / 6.0 mm² (12 AWG / 10 AWG) |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PC/PA (High-performance thermoplastic) |
| Safety Class | Class II |
| Certification | TÜV, UL, CE |
Application Scenarios
- Utility-Scale Solar Plants: Reliable high-voltage connections for large-scale energy projects.
- Residential & Commercial Rooftops: Secure wiring for PV modules, string inverters, and combiner boxes.
- Off-Grid Systems: Durable connectivity for remote solar installations and battery storage systems.
Why Choose Zivopower PV01?
At Zivopower, we focus on delivering high-quality BOS (Balance of System) components. The PV01 Solar Connector is designed to minimize power loss and maximize the lifespan of your solar investment. Through rigorous quality control and standardized manufacturing, we provide the performance you can trust.
