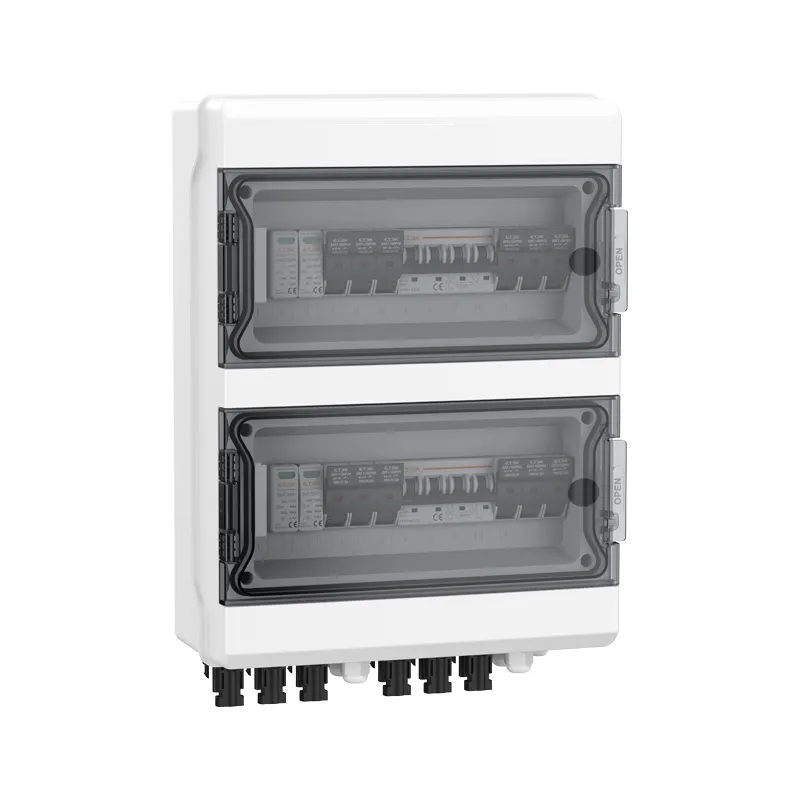

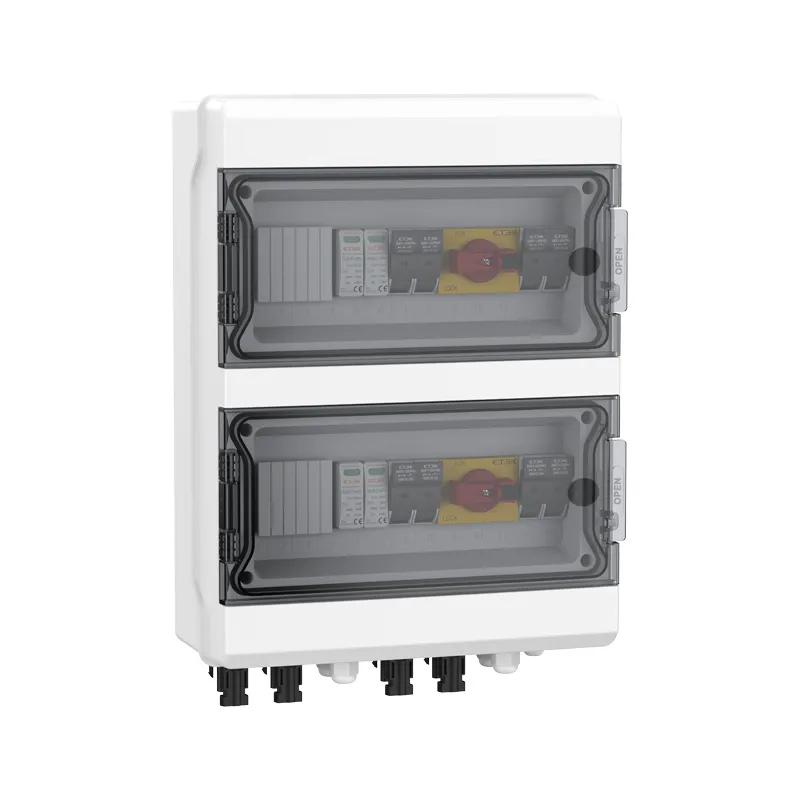

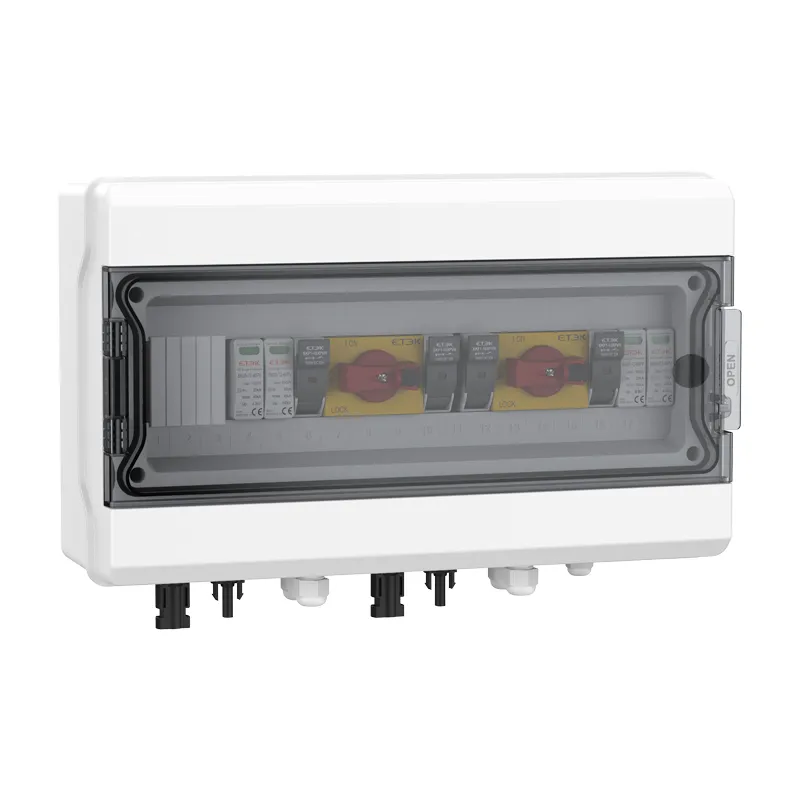

ZPDBS-PV Solar Combiner Box for Solar Power System
ZPDBS-PV solar combiner box for photovoltaic systems, with IP65 enclosure, integrated DC fuse and surge protection, wall mounting design, and support for up to 6 strings of DC input and 2 output strings.
Product Overview
Zivopower ZPDBS-PV Solar Combiner Box is designed for household and industrial photovoltaic power generation systems that require reliable DC input combining and integrated protection. The source page describes this series as using a high-strength plastic shell to ensure the product is sturdy and durable, while the IP65 enclosure rating helps provide dependable protection in harsh outdoor environments. :contentReference[oaicite:1]{index=1}
This combiner box is suitable for PV systems with operating voltages of 500V, 600V, and 1000V. It can be equipped with components such as DC circuit breakers, disconnectors, DC surge protectors, DC fuses, photovoltaic connectors, or waterproof connectors depending on configuration. The series provides lightning protection, short-circuit protection, and grounding protection to improve overall system safety. :contentReference[oaicite:2]{index=2}
According to the product page, the ZPDBS-PV series supports up to 6 strings of DC input and can be easily mounted on the wall. In addition to the standard core components, the configuration can also be customized according to user requirements, making it suitable for a wide range of residential and industrial solar projects. :contentReference[oaicite:3]{index=3}
Technical Specifications
| Item | ZPDBS-PV2/2 | ZPDBS-PV4/2 | ZPDBS-PV6/2 |
|---|---|---|---|
| DC Input Strings | 2 | 4 | 6 |
| Output Strings | 2 | 2 | 2 |
| Max. DC Voltage | 600V / 1000V | 500V / 1000V | 1000V |
| Max. Input Current | 32A | 15A | 10A / 20A |
| Max. Output Current | 32A | 32A | 32A / 63A |
| Surge Protection Experimental Level | II | II | II |
| SPD Max. Operation Voltage | 600V / 1000V | 600V / 1000V | 1000V |
| SPD In (8/20μs) | 20kA | 20kA | 20kA |
| SPD Imax (8/20μs) | 40kA | 40kA | 40kA |
| SPD Voltage Protection Level | 2.6kV / 4kV | 2.6kV / 4kV | 4kV |
| SPD Poles | 2P | 2P | 2P |
| SPD Design Features | Plug-in module | Plug-in module | Plug-in module |
| DC Fuse Rated Operation Voltage | 1000V | 1000V | 1000V |
| DC Fuse Rated Current | 15A | 15A | 15A |
| Fuse Size | 10×38mm | 10×38mm | 10×38mm |
| Main Switch Rated Current | 32A | 32A | 32A / 63A |
| Enclosure Material | PC or ABS | PC or ABS | PC or ABS |
| Degree of Protection | IP65 | IP65 | IP65 |
| Impact Protection Level | IK10 | IK10 | IK10 |
| Input or Output Connector | PG or MC4 | PG or MC4 | PG or MC4 |
| Operating Temperature | -25℃ to +55℃ | -25℃ to +55℃ | -25℃ to +55℃ |
| Humidity | 95% | 95% | 95% |
| Altitude | 2000m | 2000m | 2000m |
| Installation | Wall Mounting | Wall Mounting | Wall Mounting |
Electrical Performance
| Performance Item | Description |
|---|---|
| PV Input Capacity | Supports up to 6 strings of DC input depending on model |
| Output Configuration | All listed models provide 2 output strings |
| System Voltage Range | Supports 500V, 600V, and 1000V photovoltaic systems depending on model |
| Integrated Protection | Provides lightning protection, short-circuit protection, and grounding protection |
| SPD Performance | Integrated SPD with In 20kA and Imax 40kA |
| Fuse Protection | Integrated 1000V DC fuse solution using 10×38mm fuse links rated 15A |
| Main Switch Capacity | Main switch rated at 32A or 63A depending on model |
| Environmental Protection | IP65 enclosure with IK10 impact protection for outdoor use |
| Connection Flexibility | Supports PG or MC4 connectors for input/output connection |
| Installation Method | Wall mounting for residential and industrial PV systems |
Key Features
- Designed for household and industrial photovoltaic systems.
- Supports up to 6 strings of DC input and 2 output strings.
- Integrated lightning protection, short-circuit protection, and grounding protection.
- Can be equipped with DC circuit breakers, disconnectors, DC SPDs, DC fuses, and PV connectors.
- High-strength plastic shell for sturdy and durable outdoor use.
- IP65 enclosure rating for harsh environments.
- PC or ABS enclosure material with IK10 impact protection.
- Wall mounting and customizable configuration for project flexibility.
Applications
- Residential rooftop solar systems
- Industrial photovoltaic power generation systems
- PV string collection and DC combining
- Outdoor solar installations requiring IP65 protection
- Solar systems with multiple string inputs
- Photovoltaic projects requiring integrated DC protection devices
Why Choose Zivopower
Zivopower supplies practical and reliable solar electrical protection products and PV balance-of-system solutions for distributors, EPCs, installers, and project buyers. We focus on clear specifications, stable supply, and responsive service to help customers source combiner box solutions more efficiently and with lower risk.
- Professional supplier of solar electrical and BOS products
- Clear technical specifications for easier project evaluation
- Support for residential and industrial photovoltaic systems
- Stable quality control before shipment
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export carton packaging according to model and quantity.
Outer Protection: Protective packing suitable for sea, air, and land transportation.
Delivery Method: Sea shipment, air shipment, express, or courier according to quantity and urgency.
Lead Time: Depends on model, quantity, and component configuration.
Customization: Support for logo printing, label customization, enclosure configuration, connector type, and OEM packaging.
FAQ
What is ZPDBS-PV used for?
It is used to combine multiple photovoltaic string inputs and provide integrated DC protection in solar power systems.
How many DC input strings does this series support?
Depending on model, it supports 2, 4, or 6 input strings.
How many output strings does it provide?
All listed models provide 2 output strings.
What protection devices are integrated inside?
The series can include DC fuses, DC surge protection, main switch components, and grounding protection functions.
Is the enclosure suitable for outdoor installation?
Yes. The enclosure is IP65 rated and designed for harsh outdoor environments.
What connector types are supported?
The input or output connector can be PG or MC4 depending on configuration.
How is it installed?
It is designed for wall mounting.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including logo printing, configuration customization, and packaging customization.
