H07Z-K Earth Cable
H07Z-K earth cable with stranded copper conductor, E-beam XLPO insulation, 450/750V rated voltage, 90°C temperature rating, and LSZH performance for grounding applications.
H07Z-K Earth Cable
H07Z-K earth cable with stranded tinned or bare copper conductor, E-beam XLPO insulation, 90°C rated temperature, and 450/750V rated voltage, designed for reliable grounding and earthing applications.
Product Overview

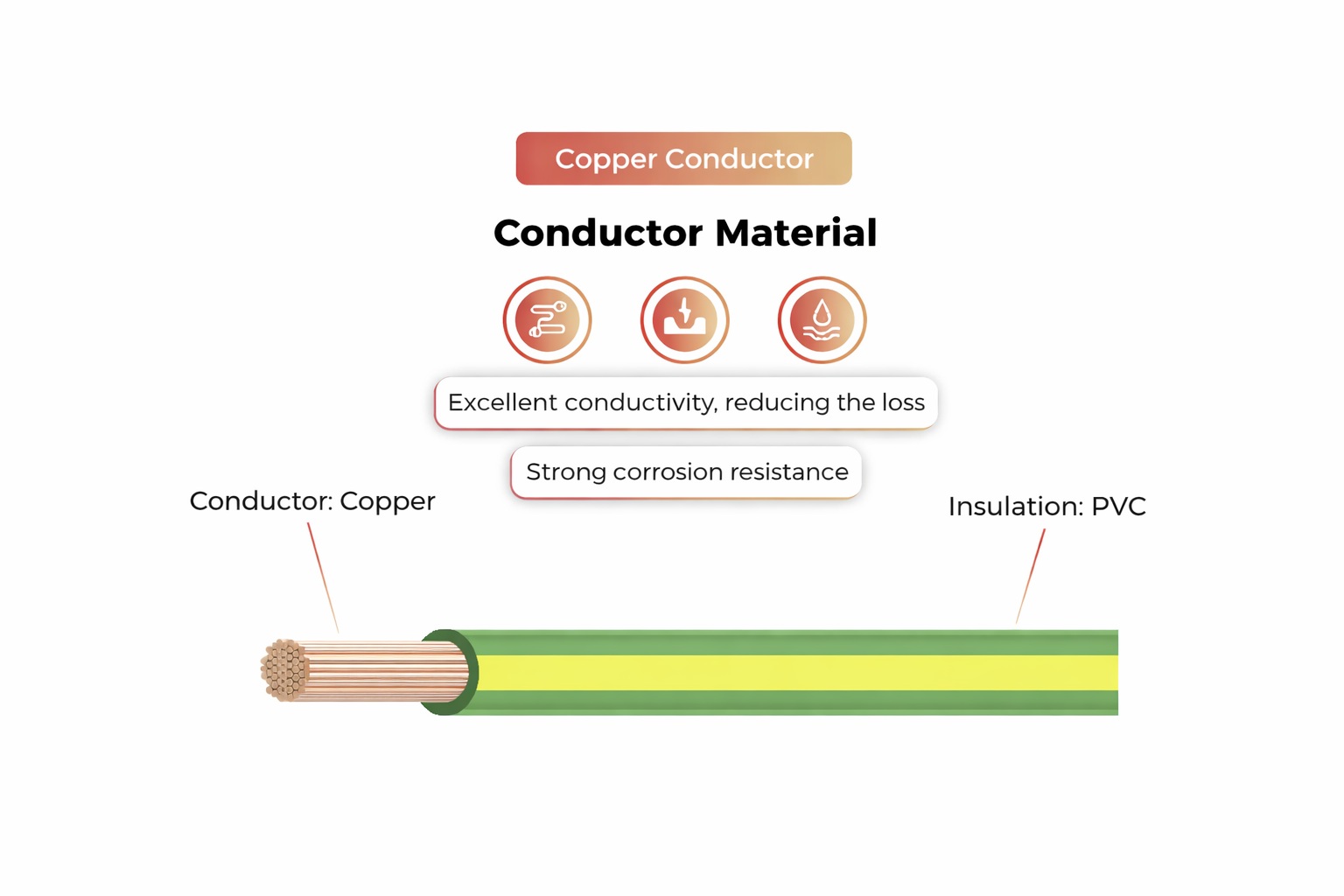

Zivopower H07Z-K Earth Cable is designed for safe and reliable grounding applications in electrical and solar power systems. It uses a stranded tinned or bare copper conductor with flexible construction, combined with E-beam XLPO insulation for dependable electrical insulation and mechanical durability.
This earth cable is rated at 450/750V and 90°C, and is manufactured according to EN 50525-3-41. It offers higher UV stability, low smoke halogen free performance, and higher mechanical stability, making it suitable for indoor and outdoor grounding installations where safety and long service life are important.
With multiple conductor sizes available from 4mm² to 35mm², H07Z-K earth cable is widely used in grounding systems, electrical panels, solar installations, and industrial power distribution projects.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | H07Z-K Earth Cable |
| Standard | EN 50525-3-41 |
| Rated Voltage | 450/750V |
| Rated Temperature | 90°C |
| Conductor | Stranded, tinned or bare copper conductor |
| Conductor Range | 1.5~120mm² |
| Insulation | E-beam XLPO |
| Main Features | Higher UV stability, low smoke halogen free, higher mechanical stability |
| Cable Type | Earth / grounding cable |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for 450/750V electrical systems |
| Temperature Rating | Rated operating temperature up to 90°C |
| Conductor Performance | Stranded copper conductor provides stable conductivity and flexible installation |
| Insulation Performance | E-beam XLPO insulation offers dependable thermal and electrical performance |
| UV Resistance | Higher UV stability for more durable use in exposed environments |
| LSZH Performance | Low smoke halogen free design supports safer cable use in enclosed or public areas |
| Mechanical Stability | Designed for higher mechanical stability during installation and operation |
| Application Function | Provides reliable grounding and earthing connection in electrical systems |
Size Table
| Cross Section (mm²) | Construction (No./mm) | Strand Dia | Cable O.D. (mm) | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|
| 4 | 56/0.285 | 2.45 | 4.30 | 5.09 |
| 6 | 84/0.285 | 3.02 | 4.80 | 3.39 |
| 10 | 142/0.285 | 4.20 | 6.60 | 1.95 |
| 16 | 228/0.285 | 5.00 | 7.80 | 1.24 |
| 25 | 182/0.40 | 6.50 | 9.50 | 0.795 |
| 35 | 266/0.40 | 8.00 | 11.0 | 0.565 |
Key Features
- Stranded tinned or bare copper conductor for stable conductivity and flexible installation.
- E-beam XLPO insulation for reliable electrical insulation and thermal resistance.
- 450/750V rated voltage for grounding and electrical wiring applications.
- 90°C rated temperature for dependable operation in demanding environments.
- Higher UV stability for improved outdoor durability.
- Low smoke halogen free design for better fire safety performance.
- Higher mechanical stability for secure installation and longer service life.
- Manufactured according to EN 50525-3-41.
Applications
- Grounding and earthing systems in solar installations
- Electrical control panels and switchboards
- Building electrical grounding connections
- Industrial power distribution systems
- Renewable energy systems requiring reliable earth cable connections
- Indoor and outdoor low-voltage wiring applications
Why Choose Zivopower
Zivopower provides reliable cable and electrical connection solutions for solar, energy storage, and power distribution projects. We focus on stable product quality, clear technical data, and practical export service to help customers source dependable products with less risk.
- Professional supplier of solar and electrical components
- Clear specifications for easier project evaluation and procurement
- Stable quality control before shipment
- Support for EPCs, distributors, and importers
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is H07Z-K earth cable used for?
H07Z-K earth cable is mainly used for grounding and earthing connections in electrical, industrial, and solar power systems.
What is the rated voltage of this cable?
The rated voltage is 450/750V.
What insulation material is used?
The cable uses E-beam XLPO insulation.
Is this cable low smoke halogen free?
Yes. It is designed with low smoke halogen free performance for improved safety.
What conductor types are available?
The conductor can be stranded tinned copper or stranded bare copper.
What sizes are available in this table?
The listed sizes are 4mm², 6mm², 10mm², 16mm², 25mm², and 35mm².
Is it suitable for solar grounding applications?
Yes. It is suitable for grounding and earthing use in solar PV systems and related electrical installations.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
