ESP15Z3Z3-K energy storage cable
ESP15Z3Z3-K energy storage cable with tinned copper conductor, XLPO insulation and jacket, 1500V DC rating, UV resistance, direct burial suitability, and strong mechanical stability.

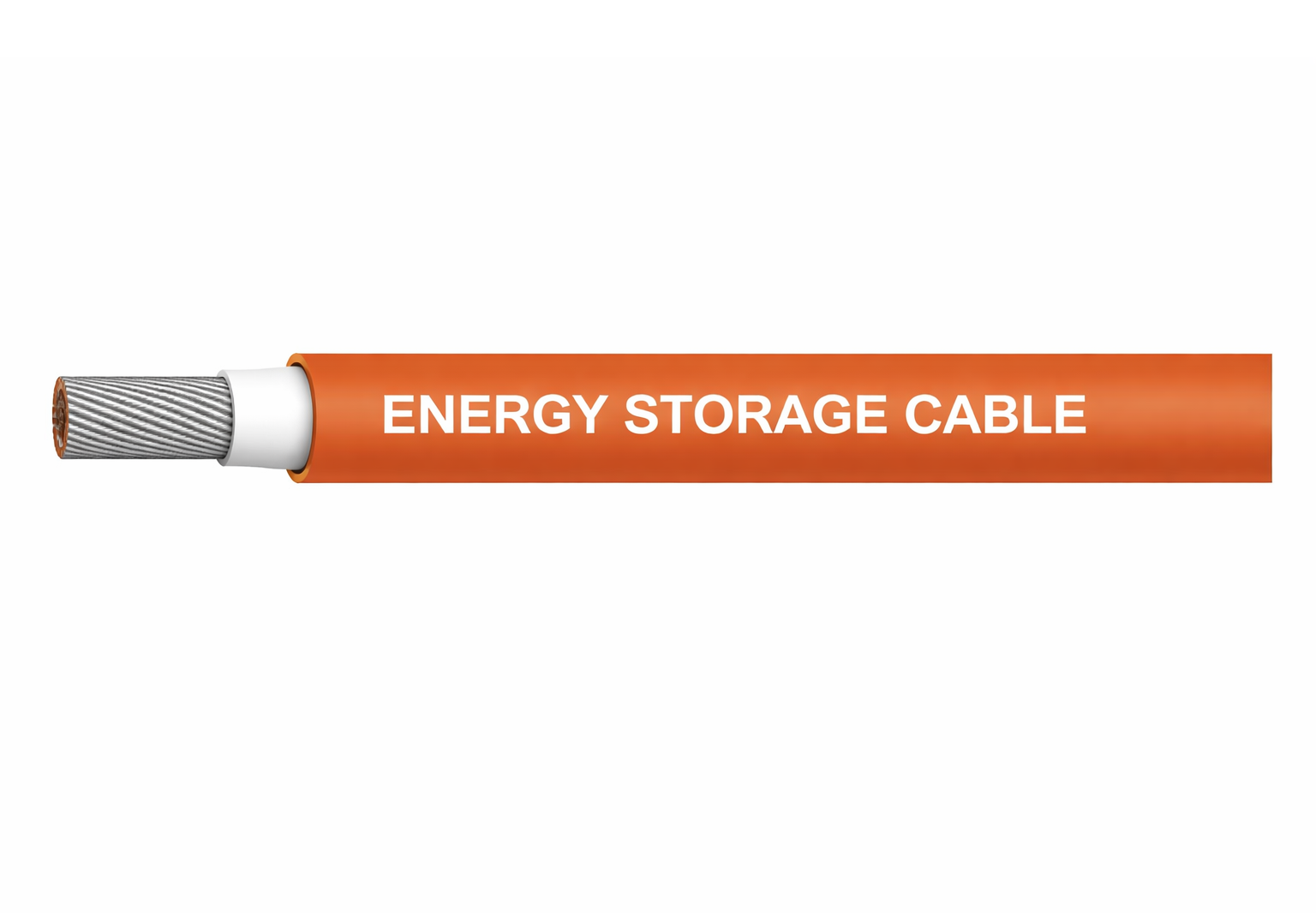

ESP15Z3Z3-K Energy Storage Cable
ESP15Z3Z3-K energy storage cable with tinned stranded copper conductor, E-beam XLPO insulation and jacket, rated for 1500V DC and -40°C to 125°C, designed for energy storage systems and demanding DC power applications.
Product Overview
Zivopower ESP15Z3Z3-K Energy Storage Cable is designed for energy storage systems and other high-performance DC applications that require stable electrical transmission, strong mechanical durability, and long-term environmental resistance. The cable uses a tinned stranded copper conductor together with E-beam XLPO insulation and E-beam XLPO jacket to ensure dependable performance in demanding operating conditions.
With a rated voltage of 1500V DC and a rated temperature range of -40°C to 125°C, this energy storage cable is suitable for battery energy storage systems, DC interconnection, and renewable energy projects where safety, durability, and long service life are critical. It is also designed with higher UV stability, suitability for direct burial, and higher mechanical stability.
Manufactured according to 2 PfG 2693/03.23, this cable is a practical choice for EPC contractors, system integrators, distributors, and project developers looking for reliable energy storage cable solutions for modern power systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | ESP15Z3Z3-K Energy Storage Cable |
| Standard | 2 PfG 2693/03.23 |
| Rated Voltage | 1500V DC |
| Rated Temperature | -40°C to 125°C |
| Conductor | Tinned stranded copper |
| Insulation | E-beam XLPO |
| Jacket | E-beam XLPO |
| Main Features | Higher UV stability, suitable for direct burial, higher mechanical stability |
| Application Type | Energy storage cable for DC power connection |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for 1500V DC energy storage and power system applications |
| Temperature Performance | Designed for operating temperatures from -40°C to 125°C |
| Conductor Performance | Tinned stranded copper conductor provides stable conductivity and improved corrosion resistance |
| Insulation Performance | E-beam XLPO insulation offers strong electrical insulation and thermal durability |
| Jacket Performance | E-beam XLPO jacket supports reliable mechanical protection in harsh environments |
| UV Resistance | Higher UV stability for outdoor installation and exposed environments |
| Direct Burial Suitability | Suitable for direct burial applications where additional environmental durability is required |
| Mechanical Stability | Higher mechanical stability for secure installation and long-term operation |
Size Table
| Cross Section (mm²) | Construction (No./mm) | Strand Dia | Cable O.D. (mm) | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|
| 10 | 74/0.40 | 3.97 | 8.20 | 1.950 |
| 16 | 120/0.40 | 5.20 | 10.20 | 1.240 |
| 25 | 182/0.40 | 6.50 | 12.00 | 0.795 |
| 35 | 252/0.40 | 7.80 | 13.20 | 0.565 |
| 50 | 373/0.40 | 9.00 | 15.50 | 0.393 |
| 70 | 340/0.50 | 11.20 | 17.50 | 0.277 |
Key Features
- Tinned stranded copper conductor for stable conductivity and better corrosion resistance.
- E-beam XLPO insulation provides dependable electrical and thermal performance.
- E-beam XLPO jacket supports durable mechanical protection.
- 1500V DC rated for modern energy storage and DC power systems.
- Wide operating temperature range from -40°C to 125°C.
- Higher UV stability for outdoor installations.
- Suitable for direct burial in demanding installation environments.
- Higher mechanical stability for safe installation and long service life.
Applications
- Battery energy storage systems (BESS)
- DC connection in energy storage cabinets and battery packs
- Renewable energy systems requiring high-performance DC cable
- Solar plus storage projects
- Power conversion and DC interconnection systems
- Outdoor and underground cable installations requiring strong durability
Why Choose Zivopower
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical power projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with less risk and better supply chain confidence.
- Professional supplier of solar, storage, and electrical connection products
- Clear technical specifications for easier project evaluation
- Stable quality control before shipment
- Support for EPCs, system integrators, distributors, and importers
- OEM and customized service available
- Responsive export support for international projects
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is ESP15Z3Z3-K energy storage cable used for?
It is mainly used for DC connection in battery energy storage systems, solar plus storage projects, and other high-performance power applications.
What is the rated voltage of this cable?
The rated voltage is 1500V DC.
What conductor material is used?
The cable uses tinned stranded copper conductor.
What insulation and jacket materials are used?
Both the insulation and jacket are made of E-beam XLPO.
Is this cable suitable for outdoor use?
Yes. It has higher UV stability and higher mechanical stability, making it suitable for demanding outdoor environments.
Can this cable be directly buried?
Yes. This cable is suitable for direct burial applications.
What sizes are available in this table?
The listed sizes are 10mm², 16mm², 25mm², 35mm², 50mm², and 70mm².
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
