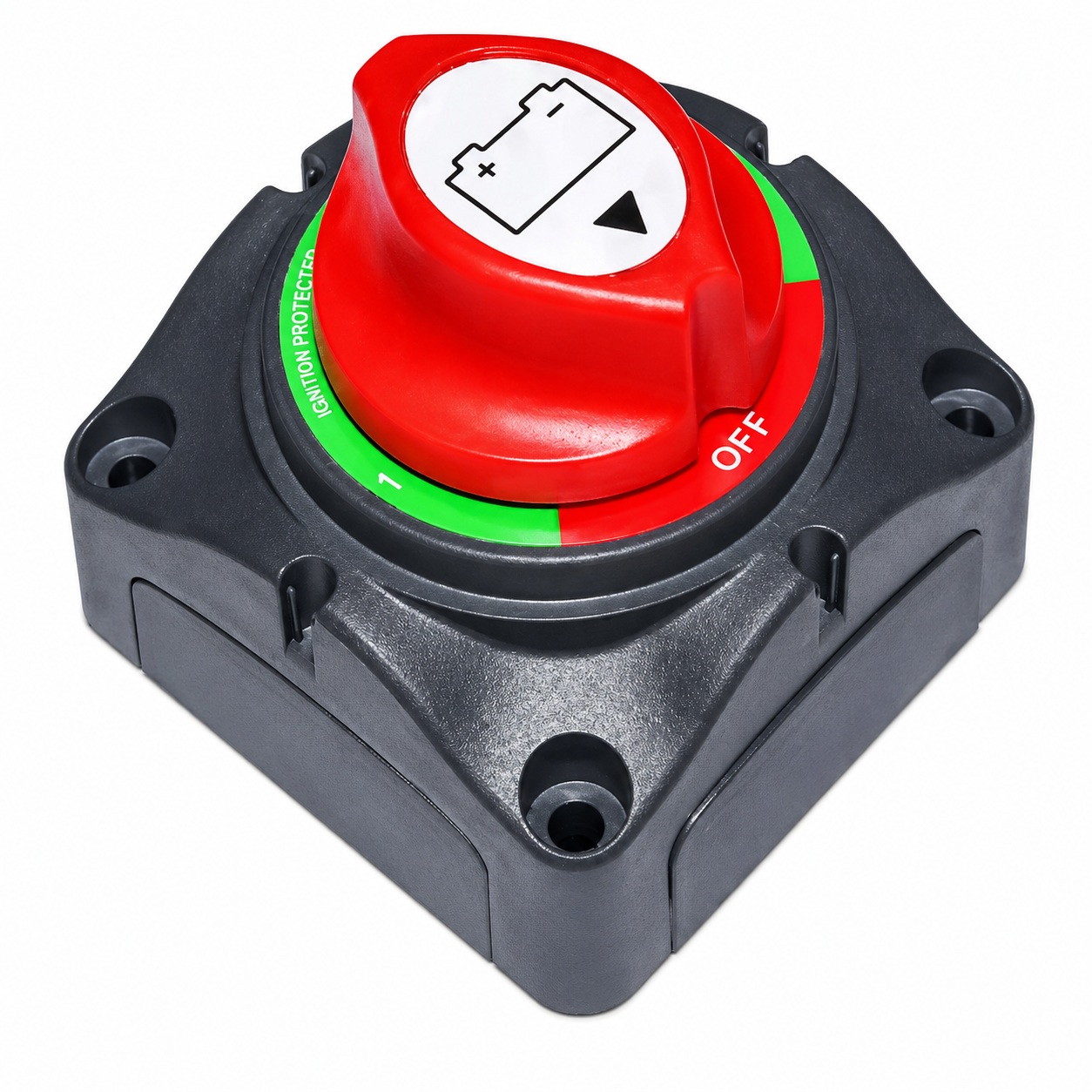

Battery Switch 275A 12-48V DC
Battery switch for 12-48V DC systems with 275A continuous rating, 455A intermittent rating, 1250A cranking rating, On/Off operation, and tin plated copper studs.
Battery Switch 275A 12-48V DC
Battery switch kit for 12V to 48V DC systems, designed for battery isolation, master power cut-off, and safe on/off control in vehicles, boats, RVs, battery banks, and DC power systems.
Product Overview
Zivopower Battery Switch is designed as a master power cut-off switch for low-voltage DC battery systems. It helps isolate the battery from connected electrical devices, accessories, circuit breaker panels, or starter systems during maintenance, storage, transport, or emergency shut-off.
This battery isolator disconnect switch supports 12-48V DC systems, with a continuous rating of 275A DC, intermittent rating of 455A DC, and cranking rating of 1250A DC. It is suitable for simple battery set-up, dual battery set-up, and single on/off switch applications.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Battery Switch / Battery Isolator Disconnect Switch |
| Continuous Rating | 275 Amps DC |
| Intermittent Rating | 455 Amps DC |
| Cranking Rating | 1250 Amps DC |
| Voltage Rating | 12-48 Volts DC |
| Operation | On / Off |
| Mounting | Recessed or Surface Mounting |
| Ignition Protection | Ignition Protected |
| Termination Stud Size | 2 × 10mm / 3/8 inch |
| Dimensions | 69 × 69 × 75H mm / 2.75 × 2.75 × 3H inches |
| Studs and Nuts | Tin Plated Copper |
Key Features
- Master power cut-off switch for battery isolation and system protection.
- Suitable for 12V to 48V DC battery systems.
- 275A continuous DC rating and 1250A cranking rating.

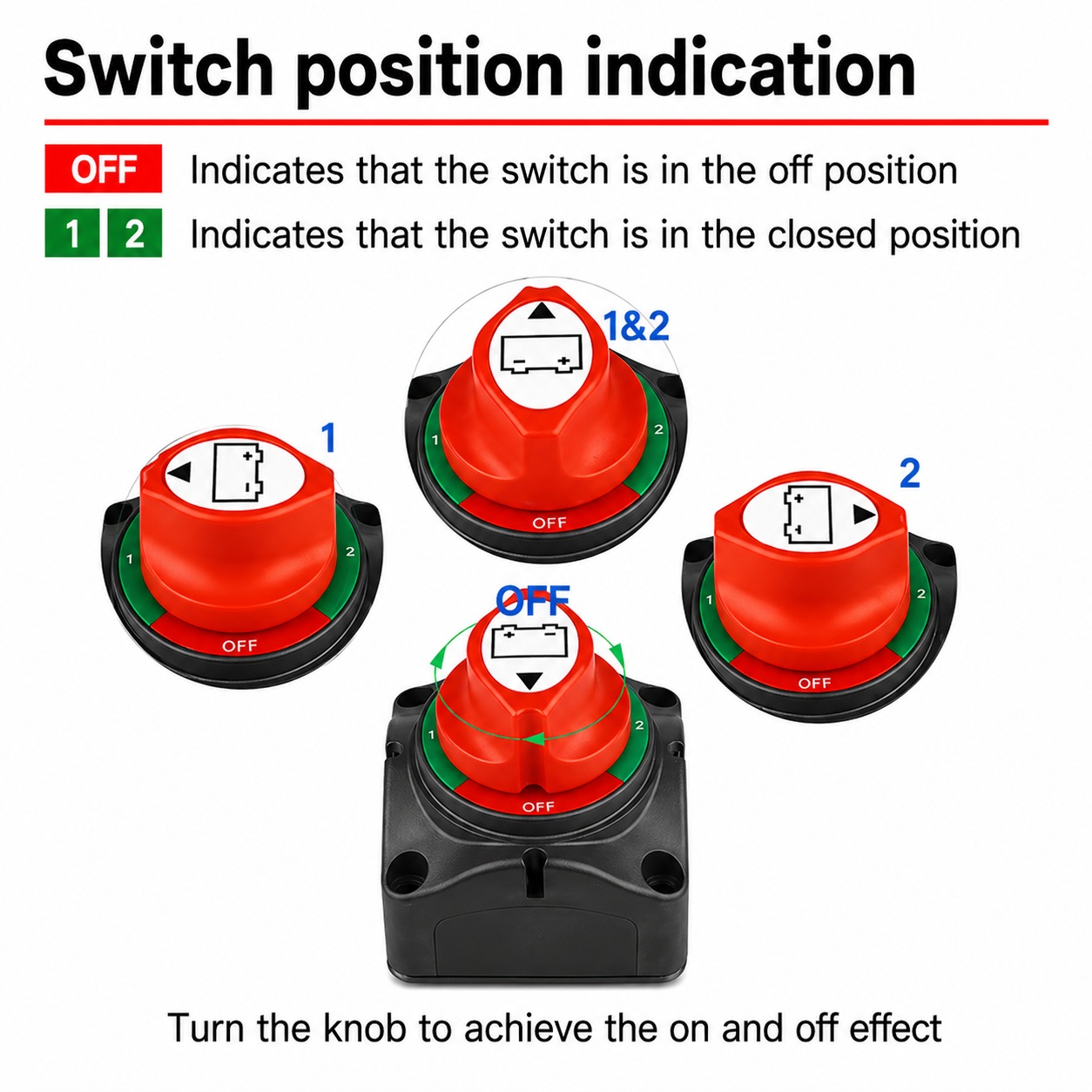

- Simple On/Off operation for easy battery control.
- Can be installed by recessed or surface mounting.
- Ignition protected design for safer use in vehicle and marine applications.

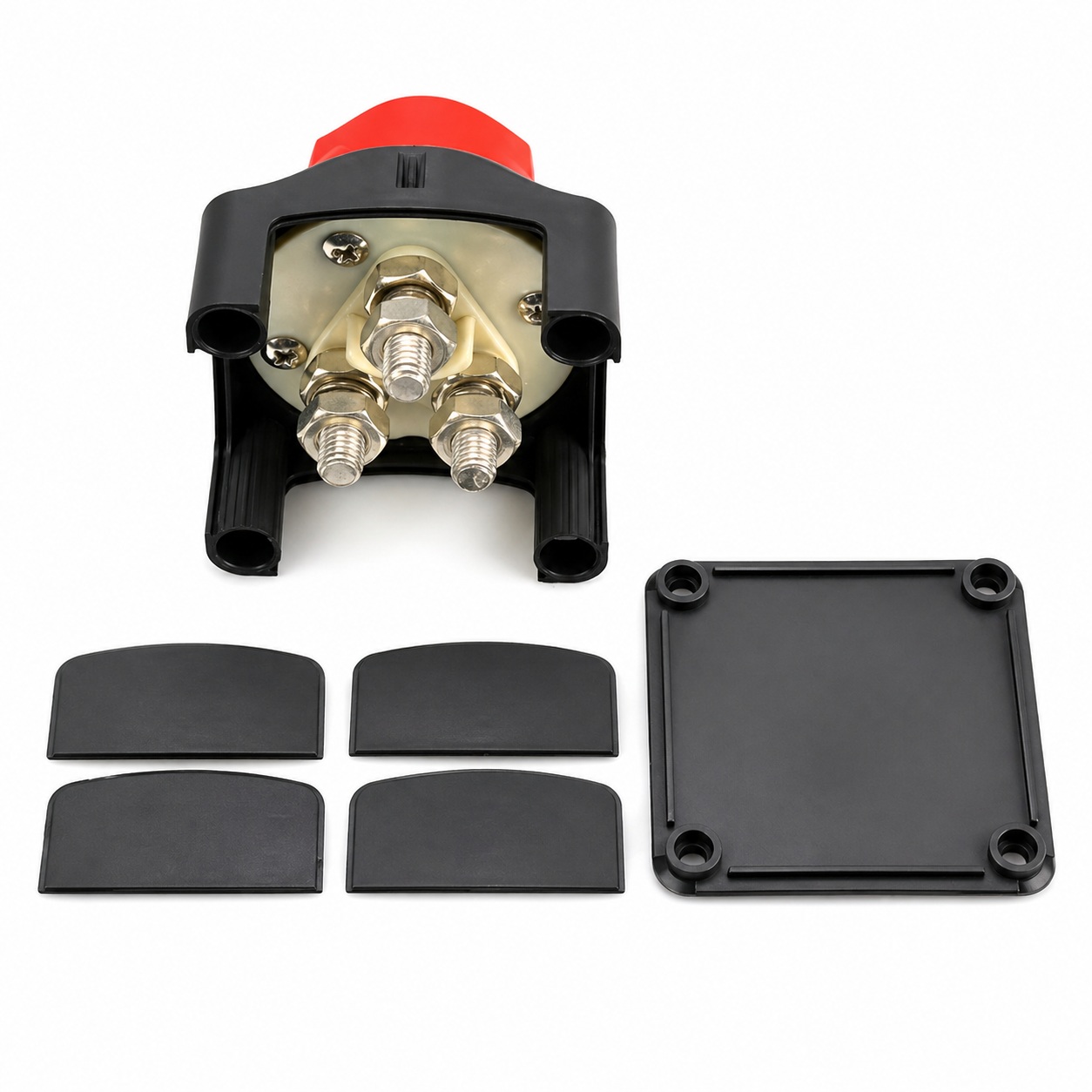

- Tin plated copper studs and nuts for reliable conductivity.
- Suitable for simple set-up, dual battery set-up, and accessory power control.
Applications
- Vehicle battery disconnect systems
- Marine battery isolation
- RV and caravan power systems
- Dual battery systems
- Starter and engine battery isolation
- Accessory power cut-off control
- Low-voltage DC power systems
Why Choose Zivopower
Zivopower provides practical and reliable battery connection and power control products for solar, storage, vehicle, marine, and DC power applications. We focus on clear specifications, stable quality, and responsive export support for distributors, installers, and project buyers.
- Professional supplier of battery and electrical accessories
- Clear technical specifications for easier sourcing
- Suitable for battery, vehicle, marine, and DC systems
- Stable quality control before shipment
- OEM and customized packaging available
- Export support for international markets
Packaging and Delivery
Packaging: Standard export carton packaging according to order quantity.
Outer Protection: Protective packing suitable for sea, air, and land transportation.
Delivery Method: Sea shipment, air shipment, express, or courier according to quantity and urgency.
Lead Time: Depends on order quantity and packaging requirements.
Customization: Support for OEM branding, labeling, and packaging customization.
FAQ
What is this battery switch used for?
It is used to disconnect or isolate the battery from the electrical system for maintenance, storage, safety, or emergency power cut-off.
What voltage range does it support?
It supports 12V to 48V DC systems.
What is the continuous current rating?
The continuous rating is 275 Amps DC.
What is the cranking rating?
The cranking rating is 1250 Amps DC.
Can it be used for dual battery systems?
Yes. It can be used in simple battery set-up and dual battery set-up applications.
How can it be mounted?
It supports recessed or surface mounting.
What is the stud size?
The termination stud size is 2 × 10mm, equivalent to 3/8 inch.
