Armored directly buried solar cable with tinned copper conductor, AC 600/1000V DC 1500V rating, strong mechanical protection, UV resistance, and anti-rat, anti-termite performance.
Armored directly buried solar cable with tinned stranded copper conductor, AC 600/1000V DC 1500V rating, strong mechanical protection, and suitability for direct burial applications in harsh photovoltaic installation environments.

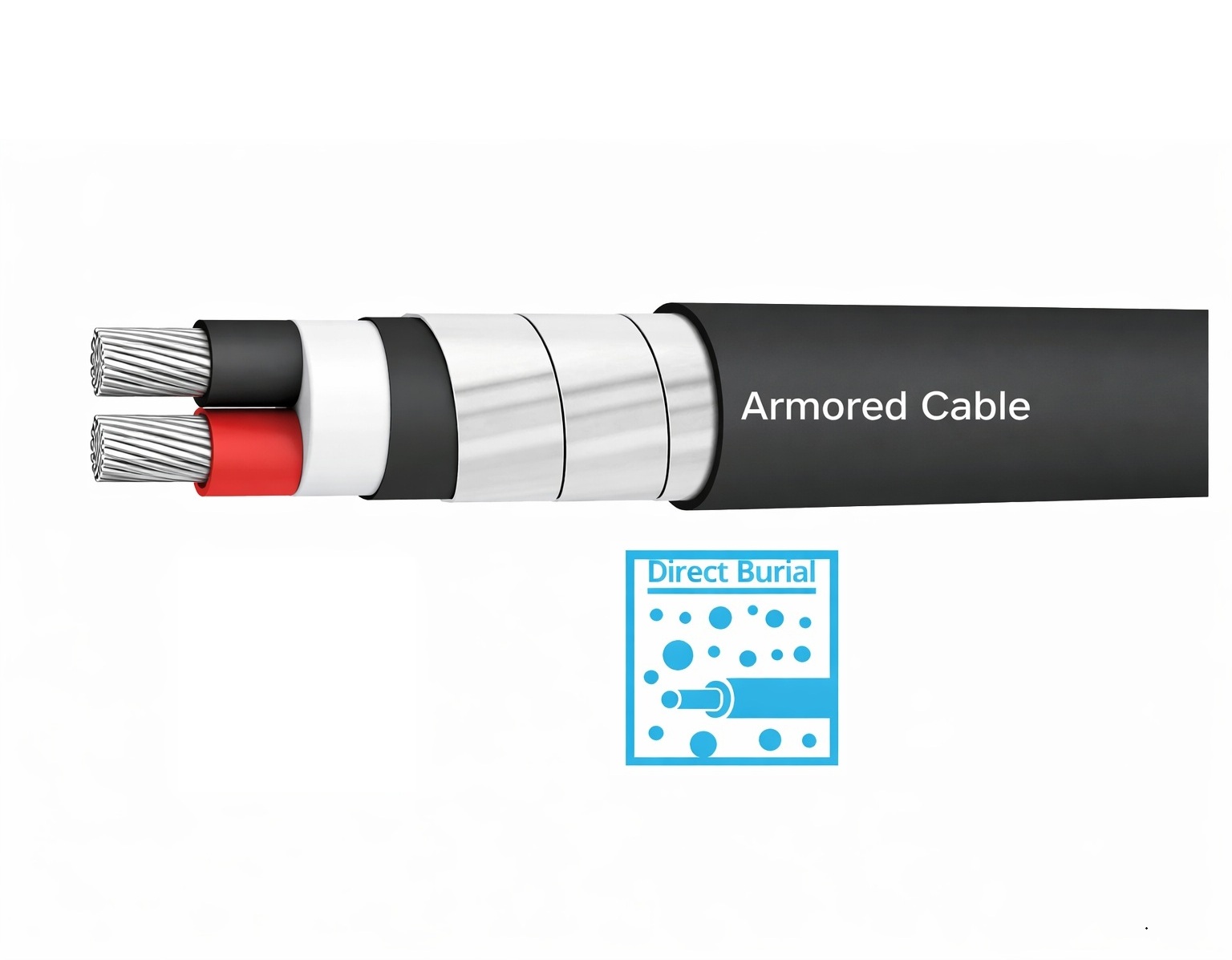

Zivopower Armored Directly Buried Solar Cable is specially designed for photovoltaic systems that require direct burial installation and stronger mechanical protection. Compared with standard solar cable, this armored cable structure provides improved resistance against external pressure, ground movement, rodents, termites, and installation damage in underground environments.
The cable uses tinned stranded copper conductor and is designed for both AC 600/1000V and DC 1500V applications. It offers higher UV stability, suitability for direct burial, higher mechanical stability, and anti-rat and anti-termite performance, making it a practical choice for outdoor and underground solar cable routing.
Manufactured according to IEC 62930:2017, this cable is suitable for demanding solar projects where underground installation, long-term reliability, and better cable protection are critical. It is widely used in solar farms, industrial PV projects, and renewable energy systems where direct burial can reduce cable tray and conduit costs.
| Item | Specification |
|---|---|
| Product Name | Armored Directly Buried Solar Cable |
| Voltage Rating | AC 600/1000V, DC 1500V |
| Conductor | Tinned stranded copper |
| Reference Standard | IEC 62930:2017 |
| Rated Temperature | -40°C to +90°C |
| Max. Conductor Temperature | 120°C |
| Bending Radius | ≥12D |
| Fire Test | IEC 60332-1 |
| Cold Bending Test | EN 60811-1-4 |
| Main Features | Higher UV stability, suitable for direct burial, higher mechanical stability, anti-rat and anti-termite |
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for AC 600/1000V and DC 1500V photovoltaic and power applications |
| Conductor Performance | Tinned stranded copper conductor provides stable conductivity and improved corrosion resistance |
| Insulation Performance | Designed for reliable electrical insulation in underground and outdoor installations |
| Mechanical Protection | Armored structure improves resistance to compression, impact, and installation damage |
| Direct Burial Suitability | Suitable for direct burial in solar and electrical cable routing projects |
| UV Resistance | Higher UV stability for exposed outdoor cable sections |
| Pest Resistance | Designed with anti-rat and anti-termite protection for underground environments |
| Temperature Performance | Rated temperature from -40°C to +90°C with max conductor temperature of 120°C |
| Fire and Bending Performance | Complies with IEC 60332-1 fire test and EN 60811-1-4 cold bending test |
| Cross Section (mm²) | Construction (No./mm) | DIA. (mm) | Steel Strip Thickness (mm) | Insulation Thickness (mm) | Jacket Thickness (mm) | Cable O.D. (mm±0.2) |
|---|---|---|---|---|---|---|
| 2×4 | 56/0.285 | 2.45 | 0.2 | 0.8 | 1.4 | 14 |
| 2×6 | 84/0.285 | 3.05 | 0.2 | 0.8 | 1.5 | 16 |
| 2×10 | 142/0.285 | 4.40 | 0.2 | 0.8 | 1.6 | 19 |
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
What is Armored Directly Buried Solar Cable used for?
It is used for underground and direct burial cable routing in photovoltaic and renewable energy systems that require stronger mechanical protection.
What makes this cable different from standard solar cable?
This cable includes an armored structure that improves mechanical protection and makes it suitable for direct burial installation.
What is the rated voltage of this cable?
The cable is rated for AC 600/1000V and DC 1500V.
What conductor material is used?
It uses tinned stranded copper conductor.
Is this cable suitable for direct burial?
Yes. It is specifically designed to be suitable for direct burial applications.
What sizes are available in this table?
The listed sizes are 2×4mm², 2×6mm², and 2×10mm².
Is it suitable for harsh outdoor environments?
Yes. It offers higher UV stability, stronger mechanical protection, and anti-rat and anti-termite performance.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
