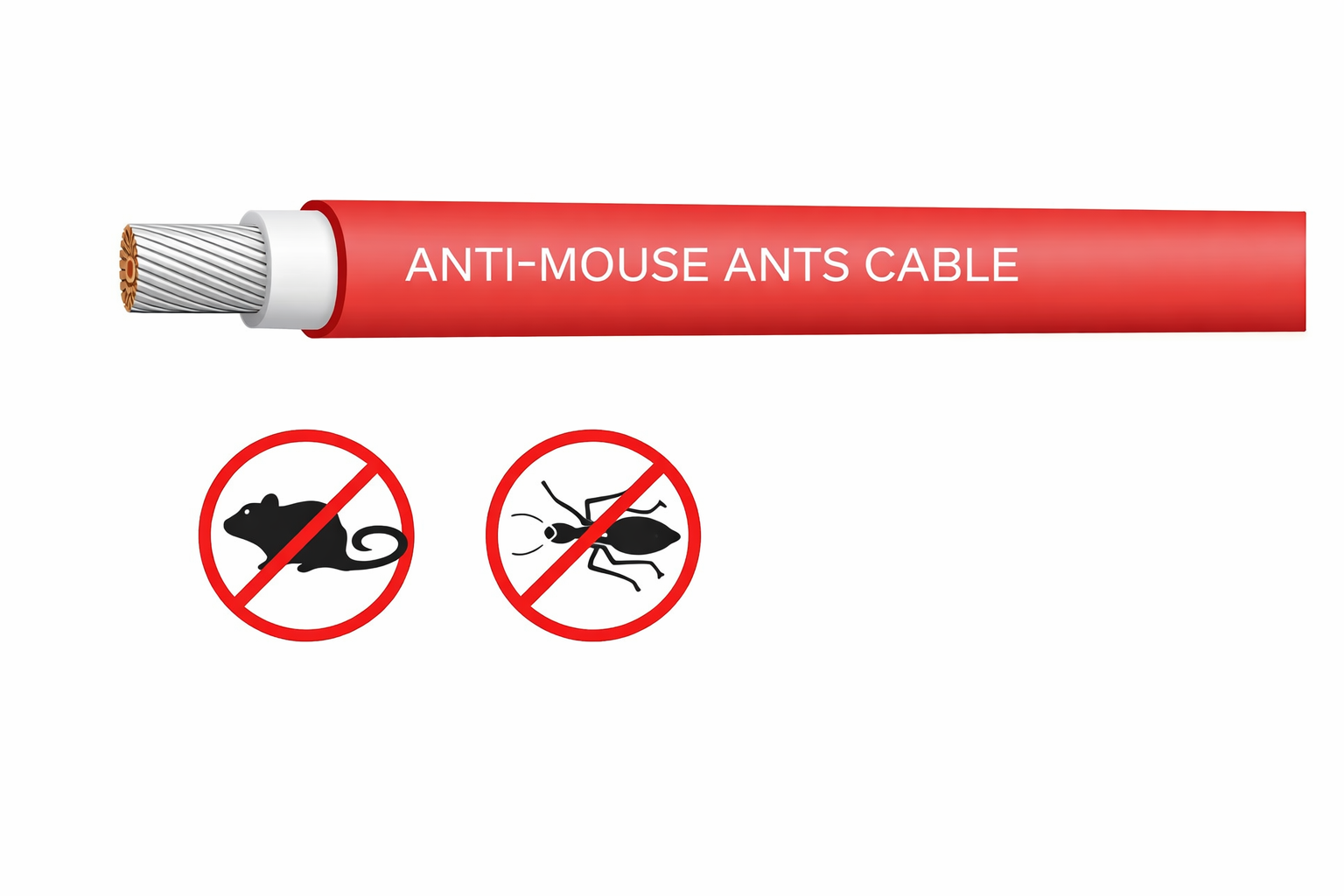

Anti-Mouse Ants PV Cable (Chemical Additive)
Anti-Mouse Ants PV cable with chemical additive protection, tinned copper conductor, XLPO insulation and jacket, DC1500V rating, UV resistance, and enhanced rodent-resistant performance.
Anti-Mouse Ants PV Cable (Chemical Additive)
Anti-Mouse Ants PV cable with chemical additive protection, tinned stranded copper conductor, E-beam XLPO insulation and jacket, DC1500V rating, and enhanced resistance against rats, rodents, UV exposure, insulation stress, and mechanical damage.
Product Overview
Zivopower Anti-Mouse Ants PV Cable (Chemical Additive) is specially designed for photovoltaic systems installed in environments where cable damage caused by rats, rodents, and harsh outdoor conditions may affect long-term system reliability. Compared with standard solar cable, this design uses a special chemical additive protection solution to improve cable resistance against rodent attack while maintaining stable electrical and mechanical performance.
The cable uses a tinned stranded copper conductor, E-beam XLPO insulation, and E-beam XLPO jacket, providing dependable conductivity, insulation strength, and outdoor durability. With a DC1500V voltage rating, it is suitable for modern photovoltaic systems requiring safer and more durable cable protection.
This cable also features higher UV stability, higher mechanical stability, and higher insulation resistance. It is a practical solution for solar installations in rooftops, farms, industrial sites, and open-field projects where rodent-related cable damage may create maintenance costs and safety risks.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Anti-Mouse Ants PV Cable (Chemical Additive) |
| Voltage Rating | DC1500V |
| Conductor | Tinned stranded copper |
| Insulation | E-beam XLPO |
| Jacket | E-beam XLPO |
| Protection Method | Chemical additive anti-rat and anti-rodent protection |
| Rated Temperature | -40°C to +90°C |
| Max. Conductor Temperature | +120°C |
| Short Circuit Temperature | +250°C |
| Reference Standard | EN 50618 & IEC 62930 |
| Testing Standard | Smoke density test: Transmittance ≥60% EN 50618; Cold bending test: -40°C ±2°C no crack EN 60811-504 |
| Main Features | Higher UV stability, higher mechanical stability, higher insulation resistance, anti-rat and anti-rodent |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for DC1500V photovoltaic systems |
| Conductor Performance | Tinned stranded copper conductor provides stable conductivity and improved corrosion resistance |
| Insulation Performance | E-beam XLPO insulation supports reliable dielectric strength and thermal resistance |
| Jacket Performance | E-beam XLPO jacket helps improve outdoor durability and mechanical protection |
| Rodent Protection | Chemical additive design helps reduce cable damage caused by rats and rodents |
| UV Resistance | Higher UV stability for long-term outdoor exposure |
| Mechanical Stability | Higher mechanical stability for secure installation and longer service life |
| Smoke Density Performance | Smoke density test transmittance ≥60% according to EN 50618 |
| Cold Bending Performance | Cold bending test at -40°C ±2°C with no crack according to EN 60811-504 |
| Temperature Performance | Rated temperature from -40°C to +90°C, max conductor temperature +120°C, short circuit +250°C |
Size Table
| Cross Section (mm²) | Conductor Construction (No./mm) | Insulation O.D. (mm) | Single Core Cable O.D. (mm) | Twin Core Cable O.D. (mm) | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|---|
| 1.5 | 30/0.25 | 3.05 | 5.00 | 5.00*10.20 | 13.7 |
| 2.5 | 34/0.285 | 3.50 | 5.40 | 5.20*11.00 | 8.21 |
| 4.0 | 56/0.285 | 3.85 | 5.60 | 5.60*11.40 | 5.09 |
| 6.0 | 84/0.285 | 4.45 | 6.30 | 6.30*12.80 | 3.39 |
| 10 | 142/0.285 | 5.50 | 7.80 | 7.80*15.90 | 1.95 |
| 16 | 228/0.285 | 6.90 | 9.30 | 9.30*18.90 | 1.24 |
| 25 | 361/0.285 | 8.70 | 11.00 | 11.00*22.30 | 0.795 |
| 35 | 266/0.40 | 10.0 | 12.50 | 12.50*25.30 | 0.565 |
Key Features
- Chemical additive protection helps reduce cable damage caused by rats and rodents.
- Tinned stranded copper conductor for stable conductivity and improved corrosion resistance.
- E-beam XLPO insulation and jacket for strong electrical and thermal performance.
- DC1500V rated for modern photovoltaic systems.
- Higher UV stability for long-term outdoor exposure.
- Higher mechanical stability for demanding installation environments.
- Higher insulation resistance for safer and more reliable operation.
- Available in both single core and twin core cable dimensions for broader project applications.
Applications
- Ground-mounted solar PV systems
- Rooftop photovoltaic installations
- Solar farms in rodent-prone environments
- Industrial and commercial PV projects
- Outdoor solar cable routing in harsh environments
- PV systems requiring enhanced cable protection against rats and rodents
Why Choose Zivopower
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
- Professional supplier of solar and electrical connection products
- Clear technical specifications for easier sourcing and project evaluation
- Stable quality control before shipment
- Support for EPCs, distributors, and importers
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is Anti-Mouse Ants PV Cable (Chemical Additive) used for?
It is used in photovoltaic systems where cables need additional protection against rats, rodents, and harsh environmental conditions.
What makes this cable different from standard PV cable?
This cable uses a chemical additive protection solution that helps reduce damage caused by rats and rodents while maintaining standard PV cable electrical performance.
What is the rated voltage of this cable?
The rated voltage is DC1500V.
What conductor material is used?
The cable uses tinned stranded copper conductor.
What are the insulation and jacket materials?
Both the insulation and jacket are made of E-beam XLPO.
Is this cable suitable for outdoor solar projects?
Yes. It has higher UV stability, higher mechanical stability, and higher insulation resistance for demanding outdoor photovoltaic installations.
What sizes are available in this table?
The listed sizes are 1.5mm², 2.5mm², 4.0mm², 6.0mm², 10mm², 16mm², 25mm², and 35mm².
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
