Anti-Mouse Ants Armored Solar Cable
Anti-Mouse Ants PV cable with tinned copper conductor, XLPO insulation and jacket, 304 stainless steel braided protection, DC1500V rating, UV resistance, and LSZH performance.
Anti-Mouse Ants PV Cable

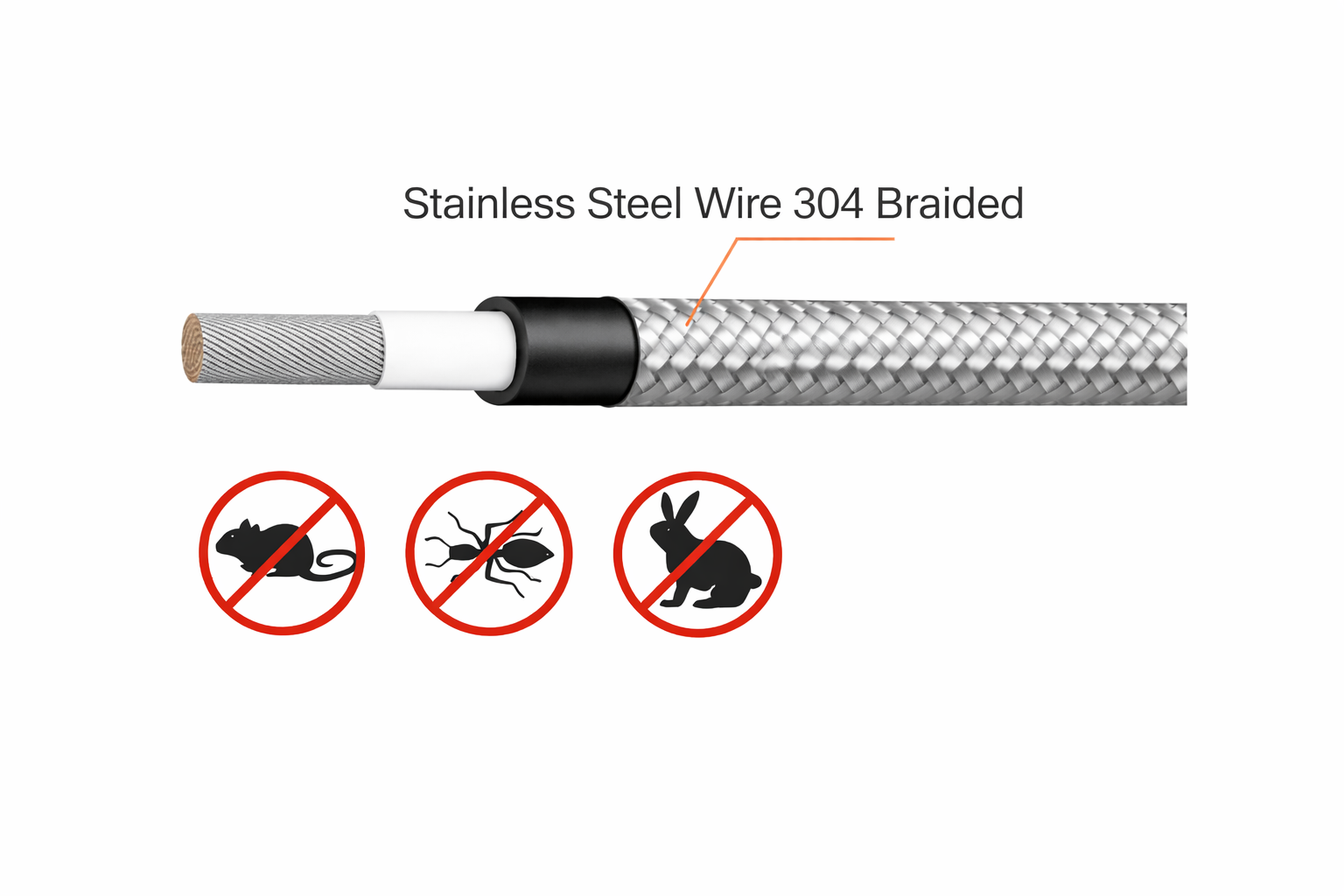

Anti-Mouse Ants PV cable with tinned stranded copper conductor, E-beam XLPO insulation and jacket, 304 stainless steel wire braided protection, DC1500V rating, and enhanced resistance against rodents, ants, UV exposure, and mechanical damage.
Product Overview
Zivopower Anti-Mouse Ants PV Cable is specially designed for photovoltaic systems installed in environments where cables may be exposed to rodents, ants, UV radiation, and mechanical impact. Compared with standard solar cable, this anti-rodent and anti-ant PV cable adds a 304 stainless steel wire braided layer to improve physical protection and long-term durability.
The cable uses a tinned stranded copper conductor, E-beam XLPO insulation, and E-beam XLPO jacket, offering stable electrical performance and dependable insulation in demanding outdoor applications. With a DC1500V voltage rating, it is suitable for modern photovoltaic systems requiring safe and durable cable protection.
This cable also features higher UV stability, higher mechanical stability, and low smoke halogen free performance. It is a practical choice for solar projects in farms, deserts, industrial sites, rooftops, and open-field installations where cable damage from animals or insects may create serious maintenance and safety risks.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Anti-Mouse Ants PV Cable |
| Voltage Rating | DC1500V |
| Conductor | Tinned stranded copper |
| Insulation | E-beam XLPO |
| Jacket | E-beam XLPO |
| Protective Layer | Stainless steel wire 304 braided |
| Steel Wire Braiding Density | 85% |
| Rated Temperature | -40°C to +90°C |
| Max. Conductor Temperature | +120°C |
| Short Circuit Temperature | +250°C |
| Reference Standard | EN 50618 & IEC 62930 |
| Testing Standard | Fire test: EN60332-1-2; O-zone resistant test: EN50396 |
| Main Features | Higher UV stability, higher mechanical stability, low smoke halogen free, anti-mouse, anti-ants |
Electrical Performance
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for DC1500V photovoltaic systems |
| Conductor Performance | Tinned stranded copper conductor provides stable conductivity and improved corrosion resistance |
| Insulation Performance | E-beam XLPO insulation supports reliable dielectric strength and thermal resistance |
| Jacket Performance | E-beam XLPO jacket helps improve durability in outdoor and demanding installation environments |
| Mechanical Protection | 304 stainless steel wire braiding improves resistance to external damage and animal attack |
| UV Resistance | Higher UV stability for long-term outdoor exposure |
| Fire Performance | Tested under fire conditions according to EN60332-1-2 |
| O-zone Resistance | Tested according to EN50396 for O-zone resistance |
| Temperature Performance | Rated temperature from -40°C to +90°C, max conductor temperature +120°C, short circuit +250°C |
Size Table
| Cross Section (mm²) | Conductor Construction (No./mm) | Insulation Thickness (mm) | Jacket Thickness (mm) | Single Core Cable O.D. (mm) | Steel Wire Braiding Density | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|---|---|
| 2.5 | 34/0.285 | 0.7 | 0.8 | 5.40 | 85% | 8.21 |
| 4.0 | 56/0.285 | 0.7 | 0.8 | 5.60 | 85% | 5.09 |
| 6.0 | 84/0.285 | 0.7 | 0.8 | 6.30 | 85% | 3.39 |
| 10 | 142/0.285 | 0.7 | 0.8 | 7.80 | 85% | 1.95 |
| 16 | 228/0.285 | 0.7 | 0.8 | 9.30 | 85% | 1.24 |
Key Features
- 304 stainless steel wire braided protection for improved cable durability.
- Anti-mouse and anti-ants design helps reduce cable damage caused by rodents and insects.
- Tinned stranded copper conductor for stable conductivity and better corrosion resistance.
- E-beam XLPO insulation and jacket for strong thermal and electrical performance.
- DC1500V rated for modern photovoltaic systems.
- Higher UV stability for long-term outdoor exposure.
- Low smoke halogen free design for improved installation safety.
- Higher mechanical stability for demanding environments and harsher field conditions.
Applications
- Solar PV systems in farms, grasslands, and rural installations
- Ground-mounted photovoltaic projects
- Rooftop solar systems exposed to rodents or insects
- Industrial and utility-scale solar plants
- Desert, open-field, and harsh outdoor PV environments
- PV installations where enhanced cable mechanical protection is required
Why Choose Zivopower
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and better project confidence.
- Professional supplier of solar and electrical connection products
- Clear technical specifications for easier sourcing and project evaluation
- Stable quality control before shipment
- Support for EPCs, distributors, and importers
- OEM and customized service available
- Responsive export support for international markets
Packaging and Delivery
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
FAQ
What is Anti-Mouse Ants PV cable used for?
It is used in photovoltaic systems where cables need extra protection against rodents, ants, UV exposure, and mechanical damage.
What makes this cable different from standard PV cable?
This cable includes a 304 stainless steel braided protective layer, which improves mechanical protection and helps resist damage from mice and ants.
What is the rated voltage of this cable?
The rated voltage is DC1500V.
What conductor material is used?
The cable uses tinned stranded copper conductor.
What are the insulation and jacket materials?
Both the insulation and jacket are made of E-beam XLPO.
Is this cable suitable for outdoor solar projects?
Yes. It has higher UV stability, higher mechanical stability, and is designed for demanding outdoor photovoltaic environments.
What sizes are available in this table?
The listed sizes are 2.5mm², 4.0mm², 6.0mm², 10mm², and 16mm².
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
