Anti-Ants PV cable with Nylon 12 protective layer, tinned copper conductor, XLPO insulation and jacket, DC1500V rating, UV resistance, and enhanced mechanical protection for solar systems.
Anti-Ants PV cable with nylon protective layer, tinned stranded copper conductor, E-beam XLPO insulation and jacket, DC1500V rating, and enhanced resistance against ants, UV exposure, insulation stress, and mechanical damage.

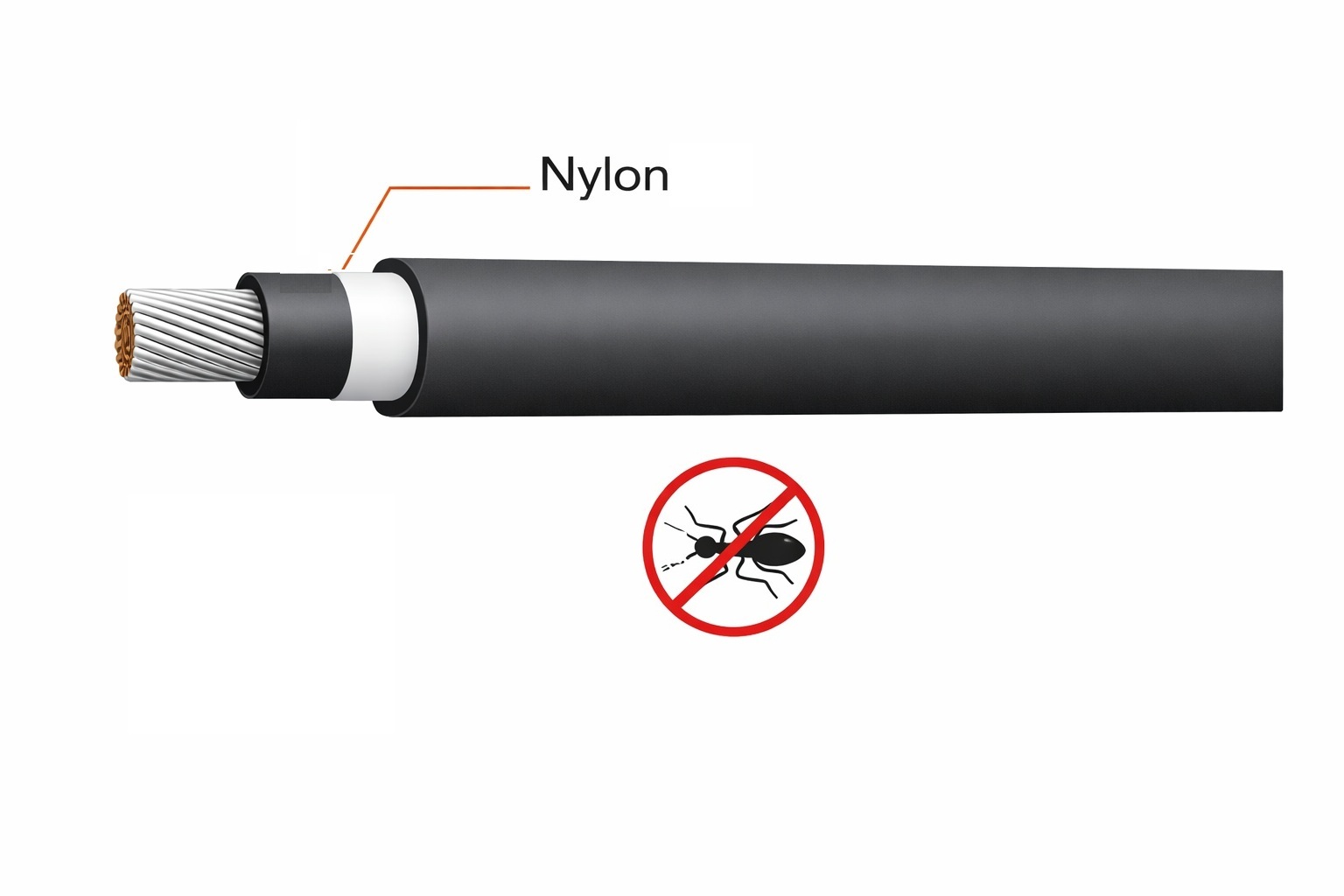

Zivopower Anti-Ants PV Cable with Nylon Protective Layer is specially designed for photovoltaic systems installed in environments where cable damage caused by ants and harsh outdoor conditions may affect long-term system reliability. Compared with standard solar cable, this design adds a Nylon 12 protective layer to improve mechanical protection and help reduce damage caused by ants.
The cable uses a tinned stranded copper conductor, E-beam XLPO insulation, and E-beam XLPO jacket, offering stable electrical performance and dependable insulation for demanding solar applications. With a DC1500V voltage rating, it is suitable for modern photovoltaic systems requiring safe and durable cable protection.
This cable also features higher UV stability, higher mechanical stability, and higher insulation resistance. It is a practical solution for solar installations in open fields, rooftops, farms, and industrial environments where insects and environmental stress may create higher maintenance risk.
| Item | Specification |
|---|---|
| Product Name | Anti-Ants PV Cable (Nylon Protective Layer) |
| Voltage Rating | DC1500V |
| Conductor | Tinned stranded copper |
| Insulation | E-beam XLPO |
| Inner Cover | Nylon 12 protective layer |
| Jacket | E-beam XLPO |
| Rated Temperature | -40°C to +90°C |
| Max. Conductor Temperature | +120°C |
| Short Circuit Temperature | +250°C |
| Reference Standard | EN 50618 & IEC 62930 |
| Testing Standard | Fire test: EN60332-1-2; Cold bending test: EN60811-1-4 |
| Main Features | Higher UV stability, higher mechanical stability, higher insulation resistance, anti-ants |
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for DC1500V photovoltaic systems |
| Conductor Performance | Tinned stranded copper conductor provides stable conductivity and improved corrosion resistance |
| Insulation Performance | E-beam XLPO insulation supports reliable dielectric strength and thermal resistance |
| Protective Layer Performance | Nylon 12 inner cover improves protection against ants and external damage |
| Jacket Performance | E-beam XLPO jacket helps improve outdoor durability and mechanical protection |
| UV Resistance | Higher UV stability for long-term outdoor exposure |
| Mechanical Stability | Higher mechanical stability for secure installation and longer service life |
| Fire Performance | Tested under fire conditions according to EN60332-1-2 |
| Cold Bending Performance | Tested according to EN60811-1-4 for cold bending performance |
| Temperature Performance | Rated temperature from -40°C to +90°C, max conductor temperature +120°C, short circuit +250°C |
| Cross Section (mm²) | Conductor Construction (No./mm) | Insulation Thickness (mm) | Inner Cover Thickness (mm) | Jacket Thickness (mm) | Single Core Cable O.D. (mm) | Conductor Resistance Max. (Ω/km, 20°C) |
|---|---|---|---|---|---|---|
| 4.0 | 56/0.285 | 0.7 | 0.3 | 0.8 | 6.20 | 5.09 |
| 6.0 | 84/0.285 | 0.7 | 0.3 | 0.8 | 7.20 | 3.39 |
| 10 | 142/0.285 | 0.7 | 0.3 | 0.8 | 8.40 | 1.95 |
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
Packaging: Standard export packaging with coils, rolls, or drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
What is Anti-Ants PV cable used for?
It is used in photovoltaic systems where cables need additional protection against ants and harsh environmental conditions.
What makes this cable different from standard PV cable?
This cable adds a Nylon 12 protective layer, which helps improve resistance to ant damage and external mechanical stress.
What is the rated voltage of this cable?
The rated voltage is DC1500V.
What conductor material is used?
The cable uses tinned stranded copper conductor.
What are the insulation and jacket materials?
Both the insulation and jacket are made of E-beam XLPO, with a Nylon 12 inner protective layer.
Is this cable suitable for outdoor solar projects?
Yes. It has higher UV stability, higher mechanical stability, and higher insulation resistance for demanding outdoor photovoltaic installations.
What sizes are available in this table?
The listed sizes are 4.0mm², 6.0mm², and 10mm².
