0.6/1.0kV AC power cable with aluminum conductor, XLPE insulation, and PVC outer sheath for solar systems, industrial projects, conduit, and direct burial installations.
0.6/1.0kV AC power cable with aluminum conductor, XLPE insulation, and PVC outer sheath, designed for low-voltage power distribution in solar power systems, industrial projects, municipal works, and direct burial installations.

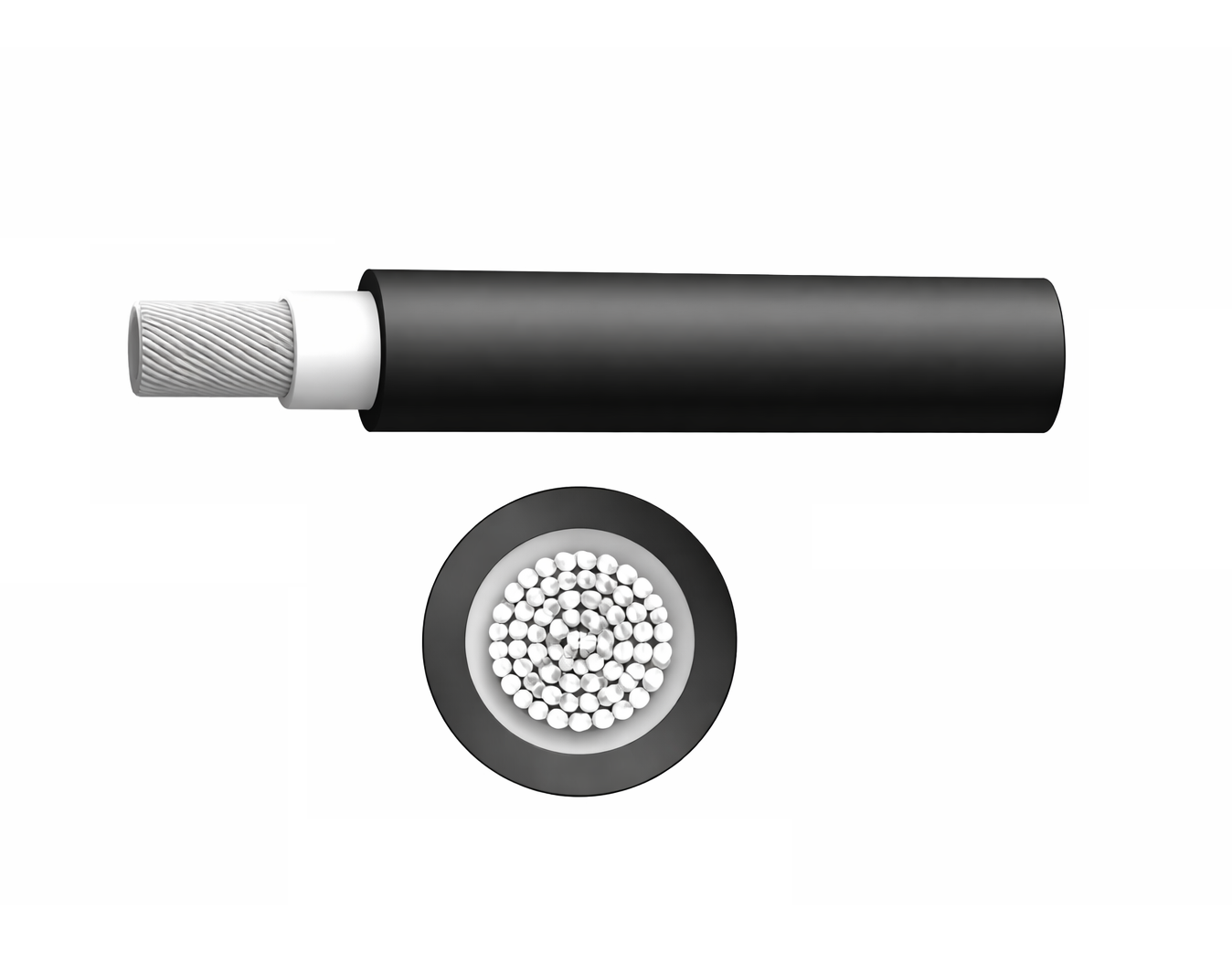

Zivopower 0.6/1.0kV AC Power Cable AL/XLPE/PVC is a low-voltage aluminum power cable designed for reliable electrical transmission in solar power systems, industrial and mining enterprises, and municipal infrastructure projects. The cable uses an aluminum conductor, XLPE insulation, and a PVC outer sheath to provide stable electrical performance and dependable mechanical protection.
With a rated voltage of 0.6/1.0kV, a maximum conductor operating temperature of 90°C, and a short-circuit conductor temperature up to 250°C for 5 seconds, this cable is suitable for fixed installation power distribution where stable long-term service is required.
| Item | Specification |
|---|---|
| Product Name | 0.6/1.0kV AC Power Cable AL/XLPE/PVC |
| Rated Voltage | 0.6/1.0kV |
| Conductor | Aluminum conductor |
| Insulation | XLPE insulation |
| Outer Sheath | PVC outer sheath |
| Max. Operating Temperature of Conductor | 90°C |
| Min. Ambient Temperature for Operating | -20°C |
| Min. Temperature for Installing Without Preheating | 0°C |
| Max. Short-Circuit Temperature of Conductor | 250°C (5s max. duration) |
| Min. Bending Radius | 15D |
| Standard | IEC 60228 / IEC 60502 |
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for 0.6/1.0kV low-voltage AC power distribution systems |
| Conductor Performance | Aluminum conductor offers practical conductivity and cost-effective cable design for fixed installations |
| Insulation Performance | XLPE insulation provides dependable thermal and dielectric performance |
| Sheath Performance | PVC outer sheath provides mechanical protection for indoor, outdoor, conduit, and buried installations |
| Operating Temperature | Maximum conductor operating temperature up to 90°C |
| Short Circuit Performance | Maximum conductor temperature during short circuit up to 250°C for 5 seconds |
| Installation Temperature | Minimum installation temperature without preheating is 0°C |
| Environmental Resistance | Designed with heat resistance, abrasion resistance, UV resistance, and chemical corrosion resistance |
| Nominal Conductor Area (mm²) | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Mass of Cable (kg/km) | Max. DC Resistance of Conductor at 20°C (Ω/km) |
|---|---|---|---|---|---|
| 50 | 1.0 | 1.4 | 16.3 | 231 | 0.641 |
| 70 | 1.1 | 1.4 | 18.2 | 308 | 0.443 |
| 95 | 1.1 | 1.5 | 19.8 | 393 | 0.320 |
| 120 | 1.2 | 1.5 | 21.5 | 480 | 0.253 |
| 150 | 1.4 | 1.6 | 23.6 | 587 | 0.206 |
| 185 | 1.6 | 1.6 | 25.6 | 718 | 0.164 |
| 240 | 1.7 | 1.7 | 28.4 | 914 | 0.125 |
| 300 | 1.8 | 1.8 | 31.0 | 1118 | 0.100 |
| 400 | 2.0 | 1.9 | 34.4 | 1411 | 0.0778 |
| 500 | 2.2 | 2.0 | 37.8 | 1776 | 0.0605 |
| 630 | 2.4 | 2.2 | 42.2 | 2260 | 0.0469 |
| 800 | 2.6 | 2.3 | 47.0 | 2839 | 0.0367 |
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical distribution projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
Packaging: Standard export packaging with coils, drums, or customized packing according to cable size and shipment quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
What is this AC power cable used for?
It is mainly used for low-voltage power distribution in solar power systems, industrial and mining enterprises, and municipal projects.
What is the rated voltage of this cable?
The rated voltage is 0.6/1.0kV.
What conductor material is used?
The cable uses an aluminum conductor.
What insulation and sheath materials are used?
The cable uses XLPE insulation and a PVC outer sheath.
Is this cable suitable for direct burial?
Yes. According to the attached document, it is suitable for direct burial installations.
What is the maximum operating temperature?
The maximum conductor operating temperature is 90°C, and the short-circuit temperature can reach 250°C for 5 seconds.
What sizes are available?
The document lists sizes from 50mm² to 800mm².
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
