AC power cable 1.8/3kV AL XLPO SWA PVC NA2XRY with aluminum conductor, XLPO insulation, steel wire armour, and PVC sheath for solar, industrial, conduit, and direct burial installations.
AC power cable 1.8/3kV AL XLPO SWA PVC NA2XRY with class 2 stranded aluminum conductor, XLPO insulation, steel wire armour, and PVC sheath, designed for reliable low-voltage to medium-duty power distribution in solar, industrial, and municipal projects.

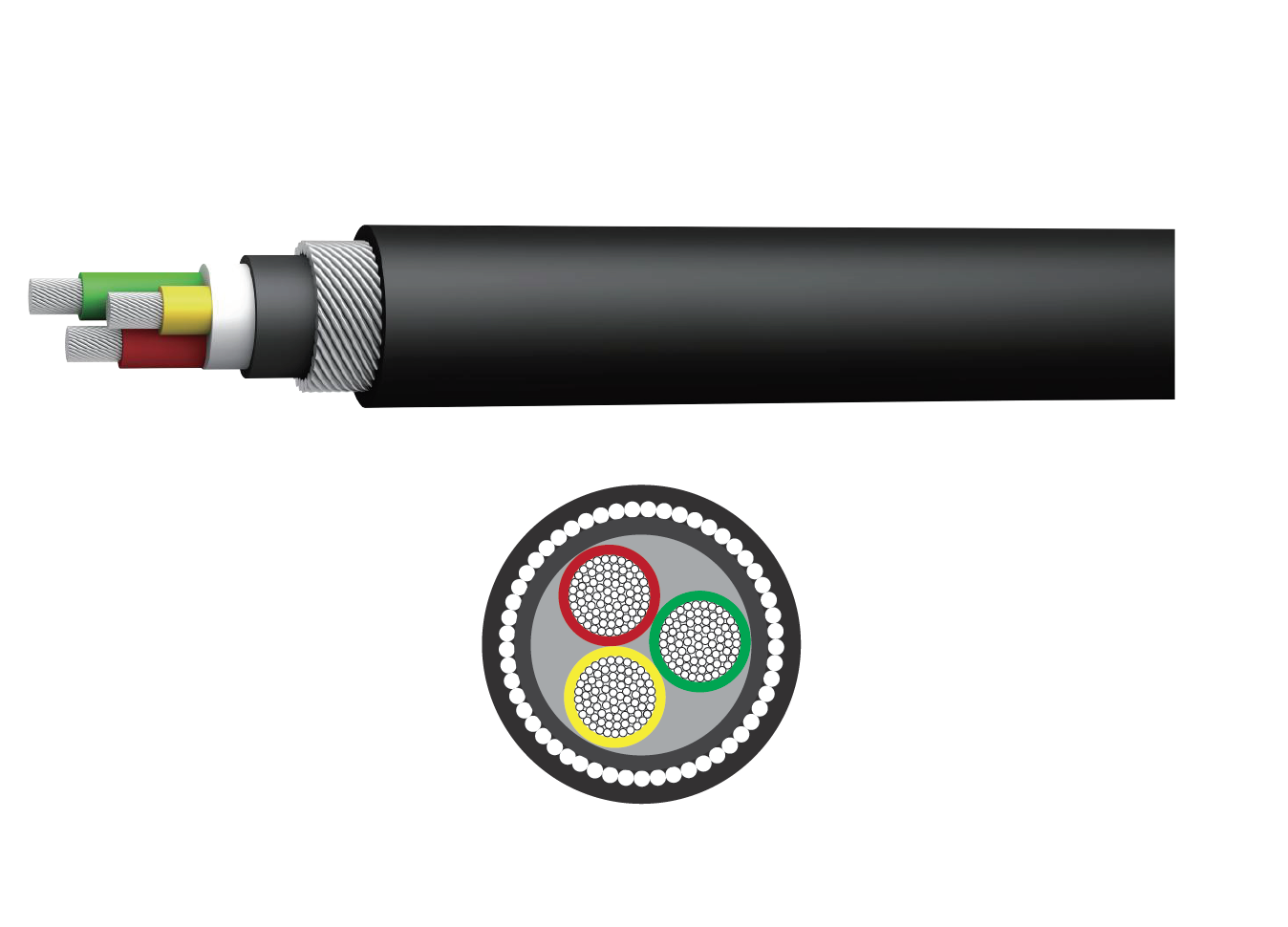

Zivopower AC Power Cable 1.8/3kV AL XLPO SWA PVC NA2XRY is designed for fixed power distribution applications requiring stronger mechanical protection, dependable insulation performance, and reliable long-term service. The cable uses a class 2 stranded aluminum conductor, XLPO insulation, PVC filler, steel wire armour, and PVC sheath, making it suitable for installations where additional mechanical strength is required.
With a rated voltage of 1.8/3.3kV, maximum conductor operating temperature of 90°C, and short-circuit conductor temperature up to 250°C, this armored power cable is suitable for solar power systems, industrial and mining enterprises, and municipal projects. It can be installed indoors, outdoors, in conduit, or by direct burial, offering good heat resistance, abrasion resistance, UV resistance, and chemical corrosion resistance.
For single-core cable, the armour is AWA (aluminum wire armour). For all other sizes, the armour is SWA (galvanized round steel wire armour). This structure makes the cable a practical choice for projects requiring higher cable reliability and stronger protection against external mechanical impact.
| Item | Specification |
|---|---|
| Product Name | AC Power Cable 1.8/3kV AL XLPO SWA PVC NA2XRY |
| Rated Voltage Uo/U | 1.8/3.3(3.6)kV |
| Conductor | Class 2 stranded aluminium conductor |
| Insulation | XLPO (Cross Linked Polyethylene) |
| Filler | PVC (Polyvinyl Chloride) |
| Armour | Single core: AWA (Aluminium wire armour); all other sizes: SWA (Galvanized round steel wire) |
| Sheath | PVC (Polyvinyl Chloride) |
| Maximum Conductor Operating Temperature | 90°C |
| Minimum Ambient Temperature for Operating | -40°C |
| Minimum Temperature for Installing Without Preheating | +0°C |
| Maximum Short-Circuit Temperature of Conductor | 250°C (5s max. duration) |
| Minimum Bending Radius | During installation: 30D; after installation: 29D. D is the diameter over the polyamide layer |
| Reference Standard | IEC 60228 / IEC 60502 |
| Performance Item | Description |
|---|---|
| Voltage Rating | Suitable for 1.8/3.3kV AC power distribution systems |
| Conductor Performance | Class 2 stranded aluminium conductor provides practical conductivity and cost-effective cable design for fixed installations |
| Insulation Performance | XLPO insulation provides dependable dielectric strength and stable thermal performance |
| Mechanical Protection | AWA or SWA armour improves resistance to external mechanical damage and installation stress |
| Sheath Performance | PVC sheath offers practical protection for indoor, outdoor, conduit, and direct burial applications |
| Operating Temperature | Maximum conductor operating temperature up to 90°C |
| Short Circuit Performance | Maximum conductor temperature during short circuit up to 250°C for 5 seconds |
| Environmental Resistance | Designed with heat resistance, abrasion resistance, UV resistance, and chemical corrosion resistance |
| Installation Performance | Suitable for indoor, outdoor, conduit, and direct burial installation |
| Nominal Conductor Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Outer Sheath (mm) | Approx. Overall Diameter of Cable (mm) | Approx. Mass of Cable (kg/km) | Max. DC Resistance of Conductor at 20°C (Ω/km) |
|---|---|---|---|---|---|
| 50 | 1.0 | 1.4 | 16.3 | 231 | 0.641 |
| 70 | 1.1 | 1.4 | 18.2 | 308 | 0.443 |
| 95 | 1.1 | 1.5 | 19.8 | 393 | 0.320 |
| 120 | 1.2 | 1.5 | 21.5 | 480 | 0.253 |
| 150 | 1.4 | 1.6 | 23.6 | 587 | 0.206 |
| 185 | 1.6 | 1.6 | 25.6 | 718 | 0.164 |
| 240 | 1.7 | 1.7 | 28.4 | 914 | 0.125 |
| 300 | 1.8 | 1.8 | 31.0 | 1118 | 0.100 |
| 400 | 2.0 | 1.9 | 34.4 | 1411 | 0.0778 |
| 500 | 2.2 | 2.0 | 37.8 | 1776 | 0.0605 |
| 630 | 2.4 | 2.2 | 42.2 | 2260 | 0.0469 |
| 800 | 2.6 | 2.3 | 47.0 | 2839 | 0.0367 |
Zivopower provides practical and reliable cable solutions for solar, energy storage, EV charging, and electrical distribution projects. We focus on stable product quality, clear technical data, and efficient export support to help customers source dependable products with lower risk and stronger project confidence.
Packaging: Standard export packaging with coils, wooden drums, or steel-wooden drums according to cable size and order quantity.
Outer Protection: Protective packing suitable for sea and land transportation.
Delivery Method: Sea shipment, air shipment, or courier delivery according to quantity and urgency.
Lead Time: Depends on specification, quantity, and production schedule.
Customization: Support for cable marking, private label, OEM packaging, and customized lengths.
What is this AC armored power cable used for?
It is mainly used for power distribution in solar power systems, industrial and mining enterprises, and municipal projects where stronger mechanical protection is required.
What is the rated voltage of this cable?
The rated voltage is 1.8/3.3(3.6)kV.
What conductor material is used?
The cable uses a class 2 stranded aluminium conductor.
What insulation and sheath materials are used?
The cable uses XLPO insulation and a PVC sheath, with PVC filler inside the cable structure.
What type of armour is used?
Single-core cable uses AWA (aluminium wire armour), while other sizes use SWA (galvanized round steel wire armour).
Is this cable suitable for direct burial?
Yes. It is suitable for indoor, outdoor, conduit, and direct burial installations.
What sizes are available?
The listed sizes range from 50mm² to 800mm².
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including cable marking, packaging, and brand customization.
