1A-63A AC MCB
ZPM1-63 6kA AC miniature circuit breaker with thermo-magnetic trip, 1A to 63A current range, B C D curves, and 1P to 4P options for overload and short-circuit protection.

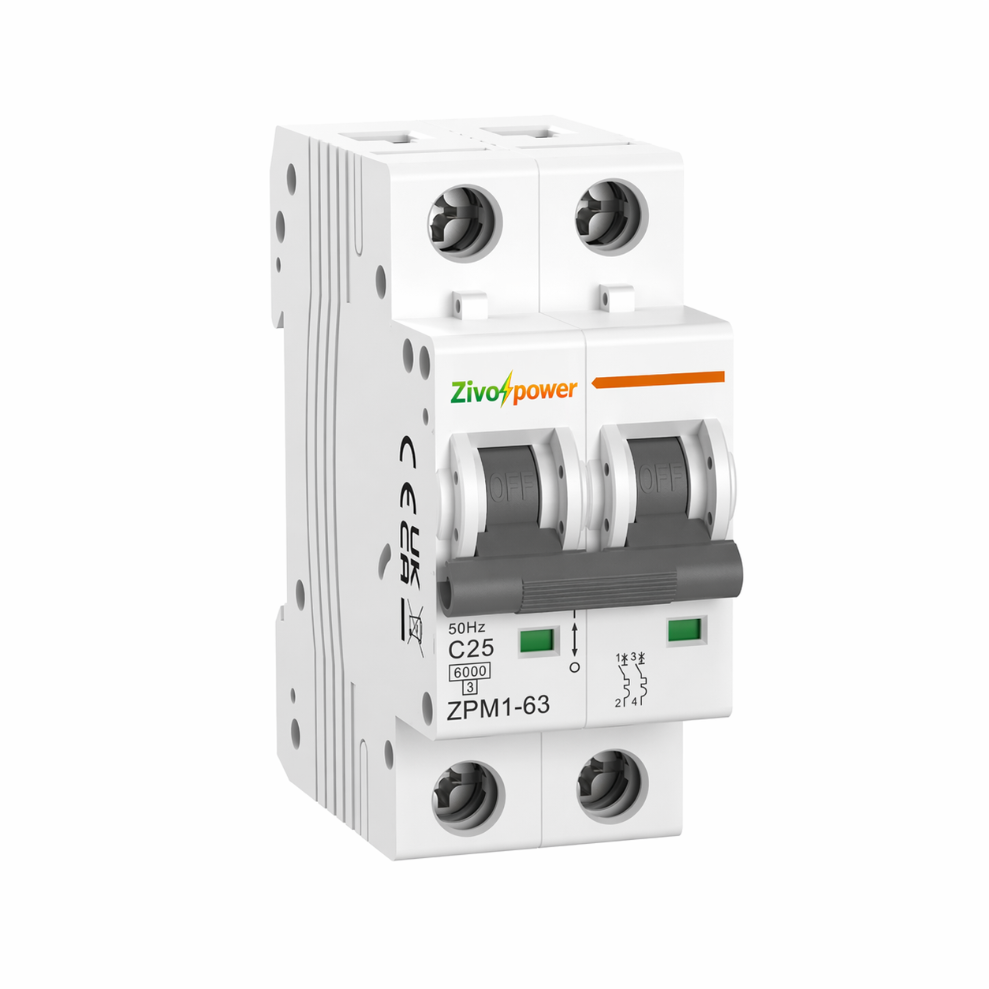

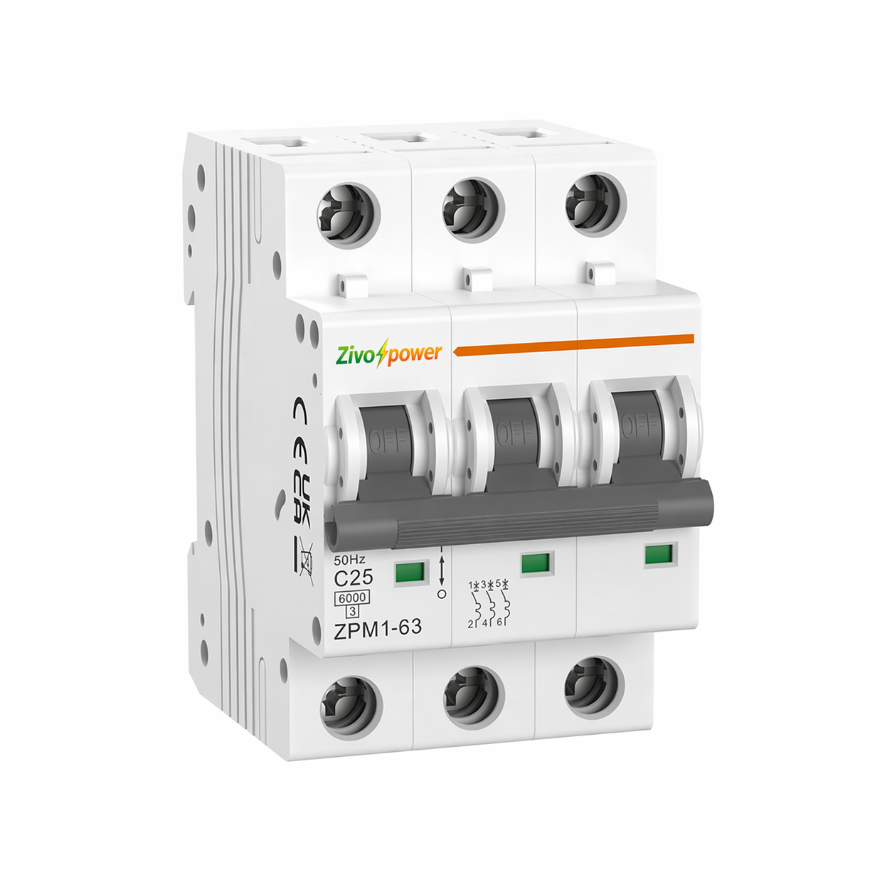

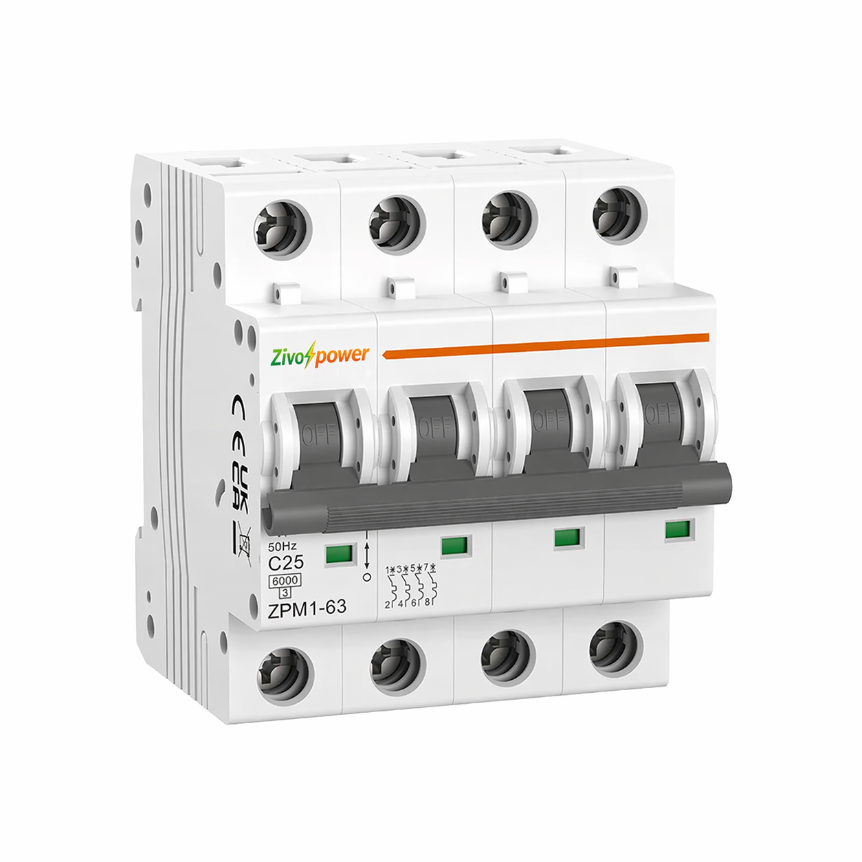

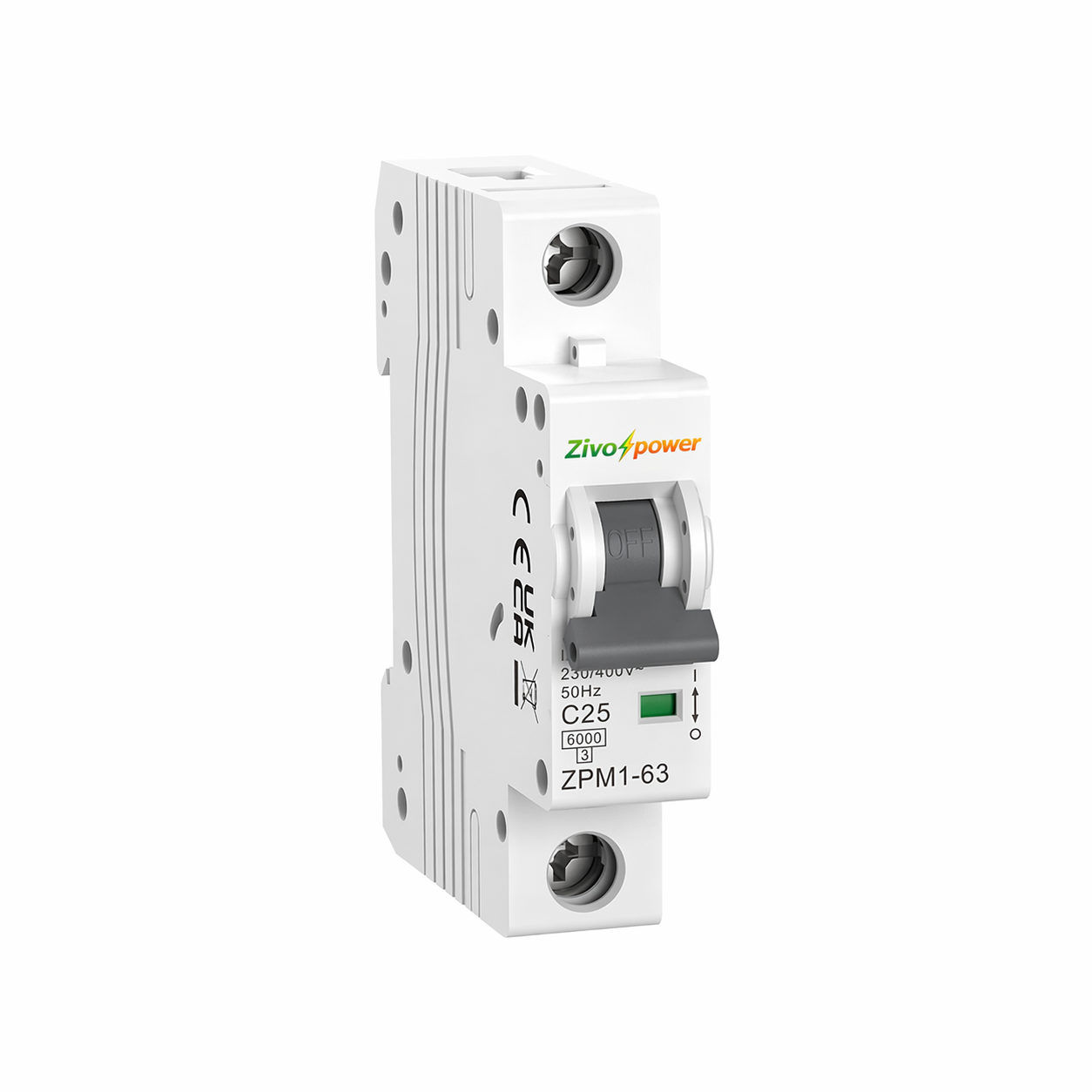

ZPM1-63 AC 6kA Miniature Circuit Breaker
ZPM1-63 AC miniature circuit breaker for overload and short circuit protection, with rated current from 1A to 63A, rated voltage 240/415V, 6kA breaking capacity, and B, C, D tripping curves.
Product Overview
Zivopower ZPM1-63 AC Miniature Circuit Breaker is designed for reliable overload and short circuit protection in residential, commercial, and light industrial electrical distribution systems. The ZPM1-63 offers stable protection performance with thermo-magnetic trip operation and a rated current range from 1A to 63A.
The product is designed with a long service life thanks to its energy-storage operating mechanism, while the enclosure and functional parts are made from high-quality plastics with flame-retardant, heat-resistant, and impulse-proof properties. It also provides higher current-limiting capacity, making it a cost-effective MCB solution.
With pole options including 1P, 1P+N, 2P, 3P, 3P+N, and 4P, plus B, C, and D tripping curves, this breaker is suitable for a wide range of circuit protection requirements. The product is designed for mounting on a 35mm DIN rail and supports connection from both top and bottom.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZPM1-63 |
| Standard | IEC60898-1 |
| Protection | Overcurrent and short circuit |
| Type of Trip | Thermo-magnetic |
| Rated Current | 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Voltage Ue | 240/415V |
| Insulation Voltage Ui | 500V |
| Rated Frequency | 50/60Hz |
| Rated Breaking Capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated Impulse Withstand Voltage Uimp | 4,000V |
| Dielectric Test Voltage | 2kV |
| Pollution Degree | 2 |
| Thermal Release Characteristic | (1.13-1.45) x In |
| Magnetic Release Characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical Life | 4,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Contact Position Indicator | Yes |
| Protection Degree | IP20 |
| Reference Temperature for Thermal Elements | 30℃ |
| Ambient Temperature | -5℃~+40℃, Max.95% humidity |
| Terminal Connection Type | Cable / Pin-type busbar / Fork-type busbar |
| Max. Terminal Size for Cable | 25mm² |
| Max. Tightening Torque | 2.5Nm |
| Mounting | 35mm DIN rail |
| Connection | From top and bottom |
| Certificates | CB, CE, TUV |
Electrical Performance
| Performance Item | Description |
|---|---|
| Protection Function | Provides overload and short-circuit protection for AC circuits |
| Trip Mechanism | Thermo-magnetic trip design for reliable circuit interruption |
| Rated Current Range | Available from 1A to 63A |
| Rated Voltage | 240/415V AC |
| Breaking Capacity | Rated breaking capacity up to 6,000A |
| Impulse Withstand Voltage | 4,000V impulse withstand performance |
| Dielectric Strength | 2kV dielectric test voltage |
| Tripping Curves | B, C, and D curves for different load characteristics |
| Energy Limiting Class | Class 3 current limiting performance |
| Service Life | Electrical life 4,000 cycles and mechanical life 10,000 cycles |

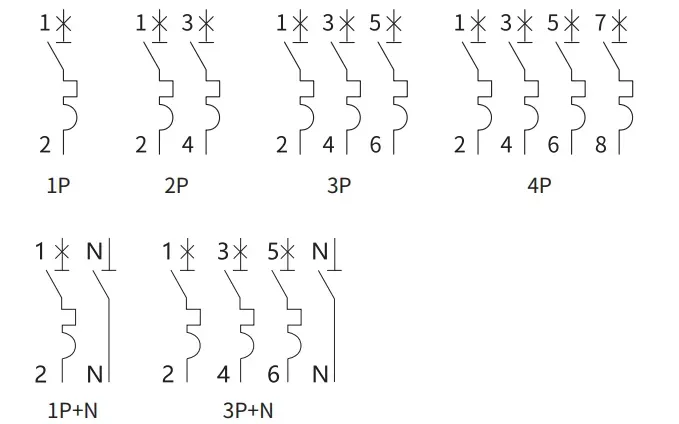

Circuit Diagram
Installation Size
Key Features
- Reliable overload and short-circuit protection for AC distribution circuits.
- Rated current options from 1A to 63A for flexible application selection.
- Available in 1P, 1P+N, 2P, 3P, 3P+N, and 4P versions.
- B, C, and D tripping curves for residential, commercial, and light industrial loads.
- 6kA rated short-circuit breaking capacity.
- Thermo-magnetic trip mechanism for stable protection performance.
- Long service life with energy-storage operating mechanism.
- DIN rail mounting and top/bottom connection for convenient installation.
Applications
- Residential electrical distribution boards
- Commercial lighting and socket circuits
- Industrial control panels and low-voltage cabinets
- Building electrical protection systems
- AC branch circuit protection
- General-purpose miniature circuit breaker applications
